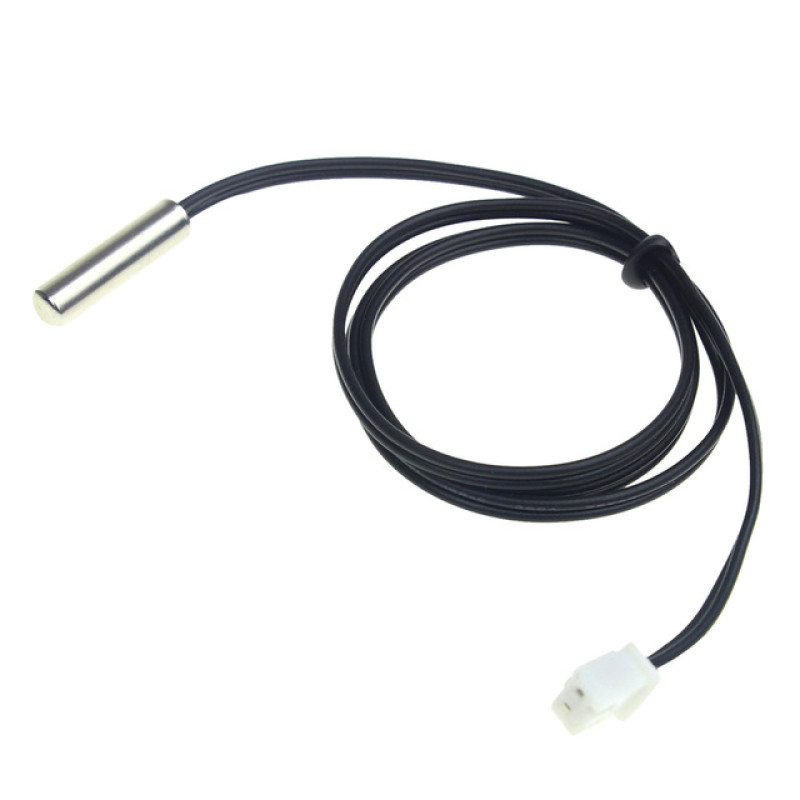

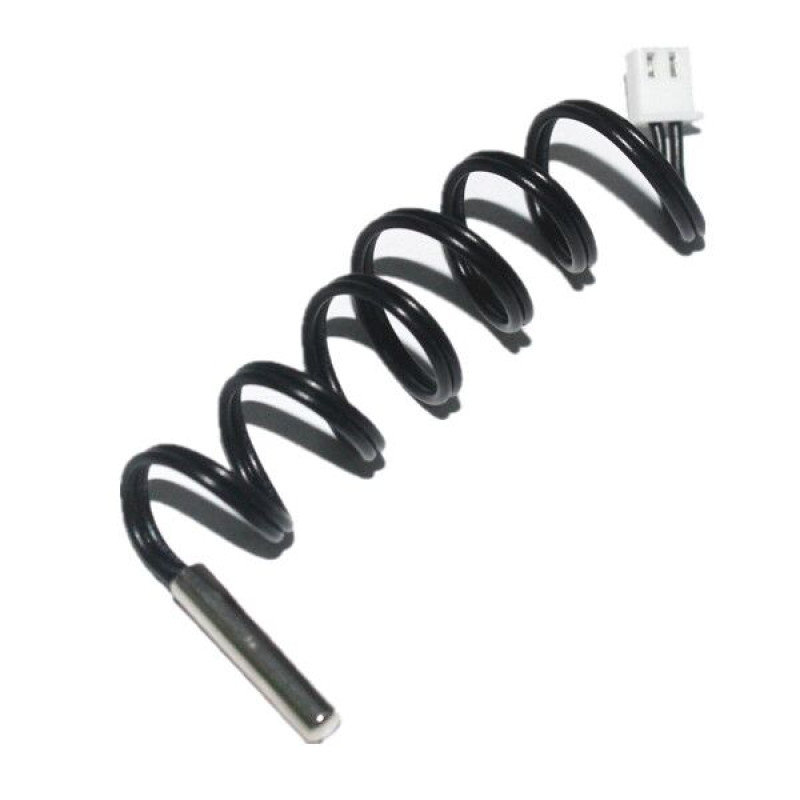

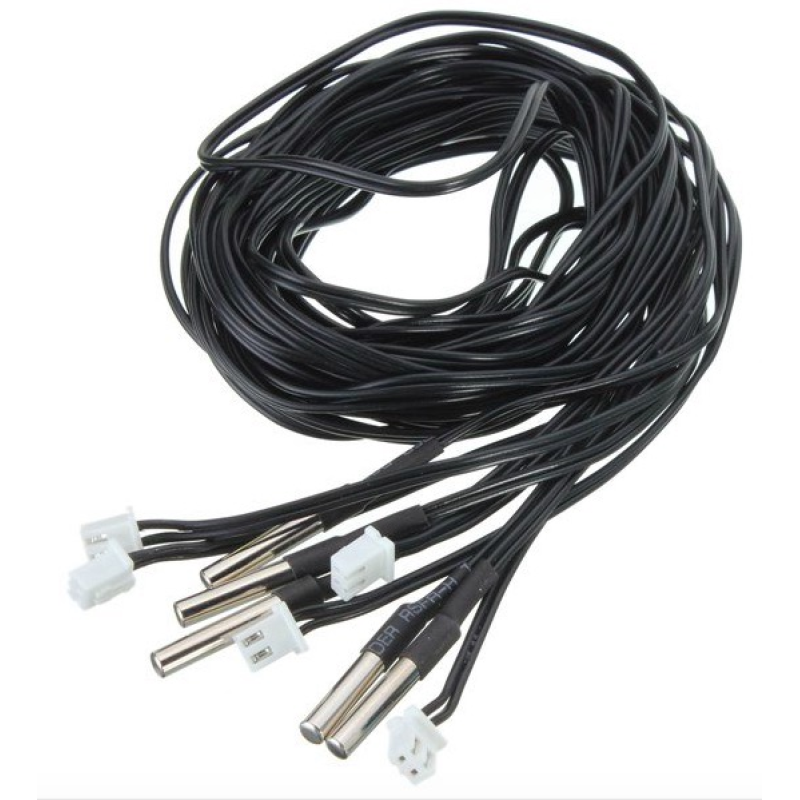

NTC Thermistor Temperature Sensor 10K 1% 3950 50cm
Out Of Stock
Click Image for Gallery
Features :
- High sensitivity, rapid response.
- Compact structure, easy installation, good water resistance.
- The use of wide temperature range, good stability, high reliability.
- Can provide different R, B value of products, interchangeable, high precision.
Specification :
- Type: Humidity Sensor
- Material: Mixture
- Material Crystal structure: Polycrystallinef
- Usage: Temperature Sensor
- Theory: Resistance Sensor
- Output: Analog Sensor
- 10K 1% accuracy: High temperature type
- Resistance accuracy: ± 1%, ± 2%, ± 3%
- The use of temperature range: -40 ℃ to +300 ℃
- The maximum rated power: 45mW
- Thermal time constant: ≤3S (static air)
- Resistance temperature coefficient: -2 to -5% / ℃
- Insulation performance: 500V
- DC test a single root insulation resistance: ≥ 100MΩ
