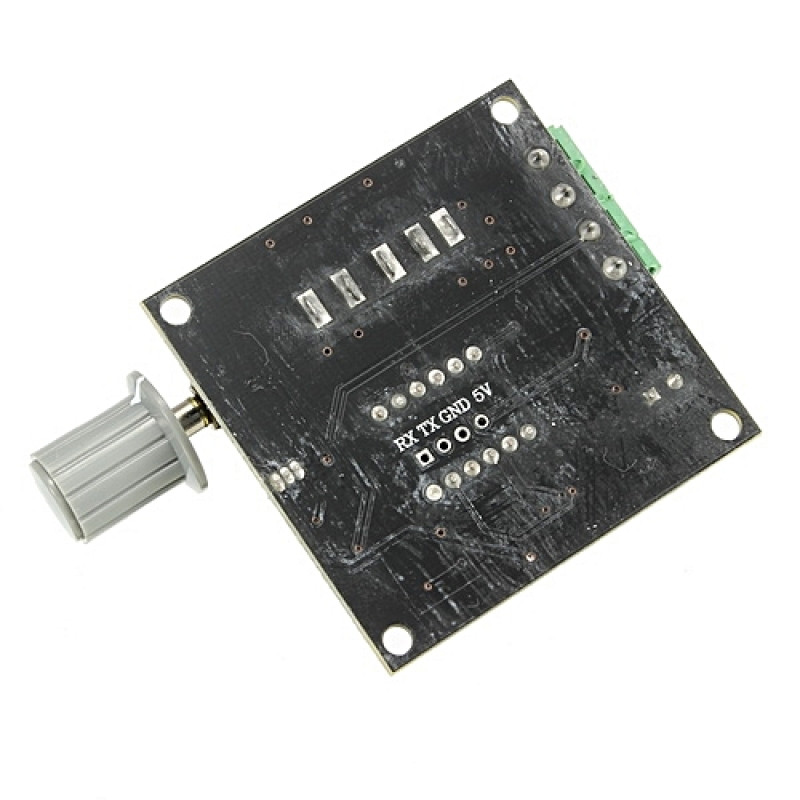

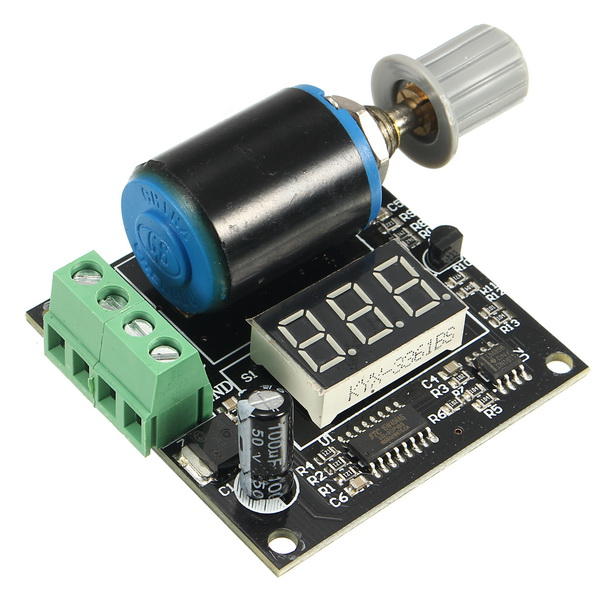

DC 12V 24V 4-20mA Digital Signal Generator Module Board

Features:


• Easy to use and connect the wire, good performance.
• Knob operation, immediately after adjusting the response output, no delay.
• The power port has polarity protection, will not damage the components with power reverse.
• Power supply voltage: DC 12V or 24V(tolerance ±25%), total power<1W.
• Output load impedance range: 0-350 ohms(DC12V); 0-800 ohms(DC 24V).
• The test output is normal, you can use a multimeter shorted "4-20mA output" terminal.
• Can be used for signal sources, valve adjustment, output meter test, the light emitting diode test, analog transmitter.

Specifications:


• Power supply: DC 12V or 24V
• Current: 4-20mA
• Total power: <1W
• Output load impedance: 0-350 ohms(DC12V); 0-800 ohms(DC 24V)
• PCB board size: 50 x 50mm / 1.97 x 1.97in
• Product weight: 38g / 1.37oz
