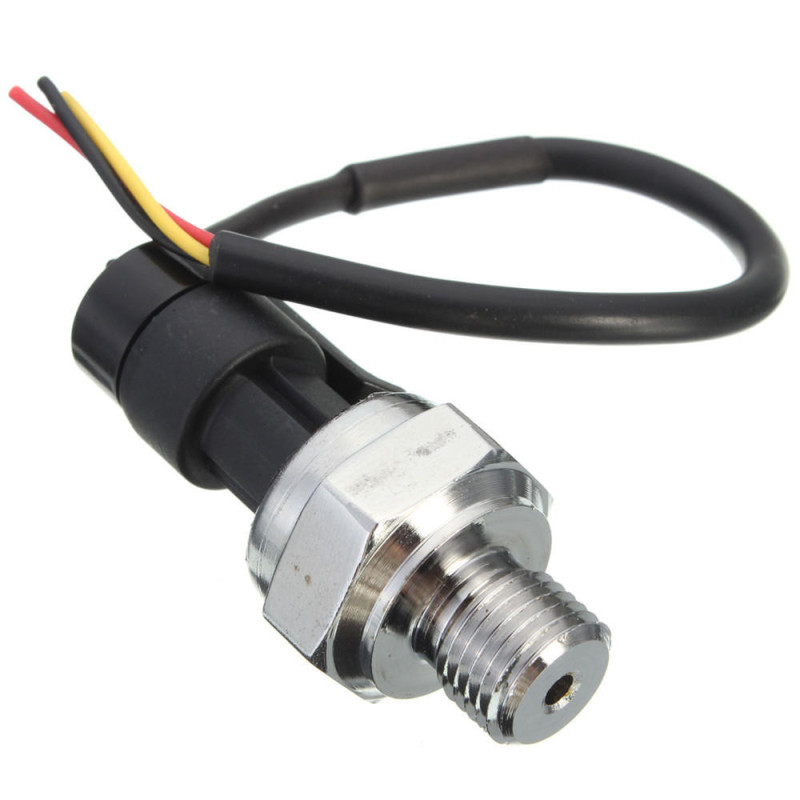

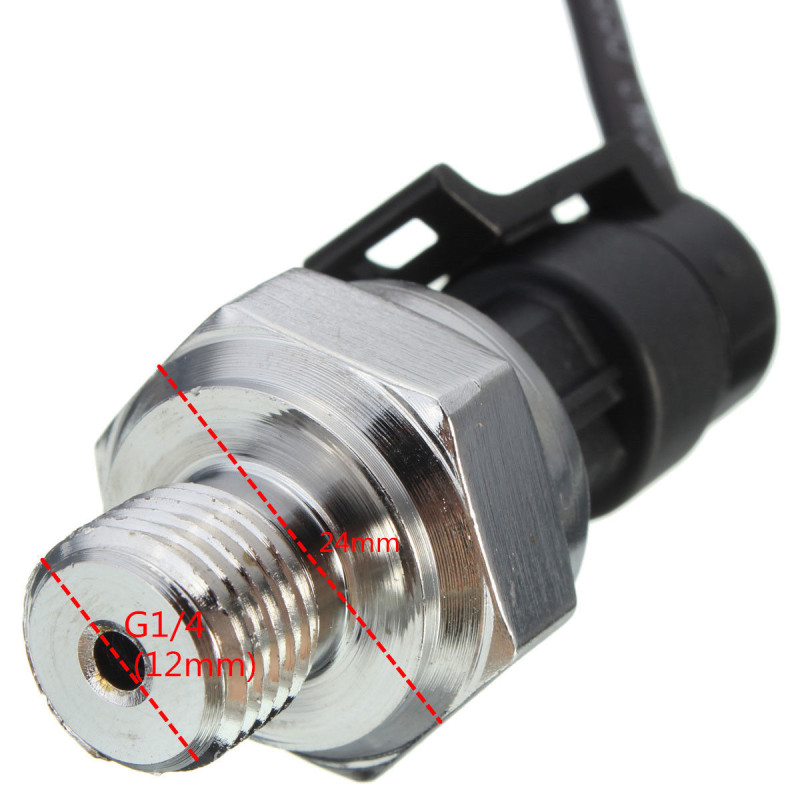

G1/4 inch 5V 0-1.2 MPa Pressure Transducer Sensor Oil Fuel Diesel Gas Water Air
Out Of Stock
Click Image for Gallery
Specifications:
Working Voltage: 5VDC
Output Voltage: 0.5-4.5 VDC
Sensor material: Carbon steel alloy
Working Current: ≤10 mA
Working Pressure Range: 0-1.2 MPa
The Biggest Pressure: 2.4 MPa
Cable length: 19cm
Destroy Pressure: 3.0 MPa
Working TEMP. Range: 0-85 Celsius degree
Storage Temperature Range: 0-100 Celsius degree
Measuring Error: ±1.5 %FSO
Temperature Range Error: ±3.5 %FSO
Response Time: ≤2.0 ms
Cycle Life: 500,000 pcs
Application: non-corrosive gas liquid measurement
Features:
Easy removal, carbon steel connection more firmly.
Stainless steel is durable, sealed waterproof line, imported chips.

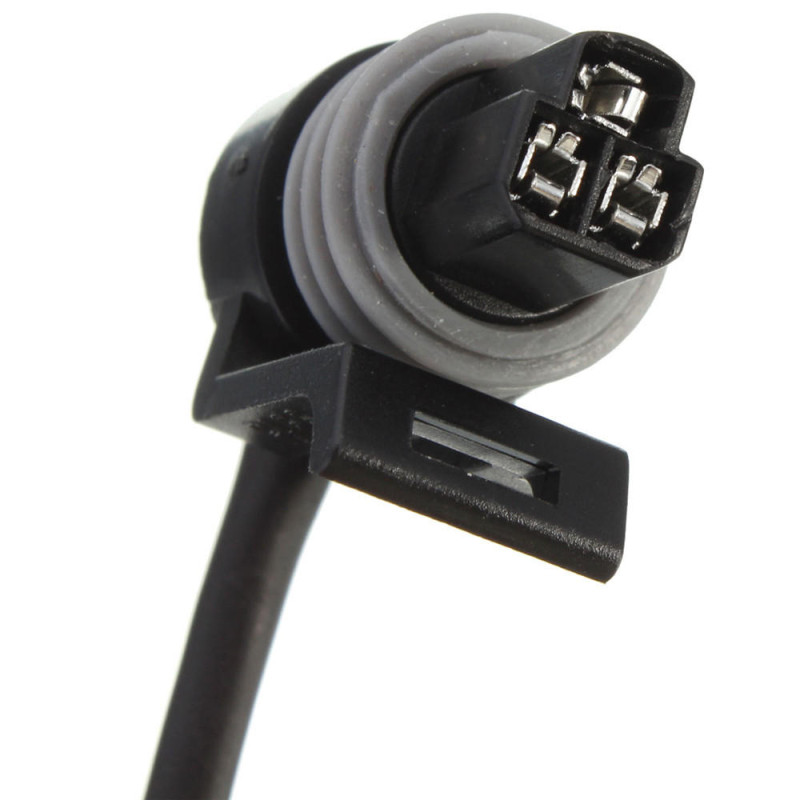

Wiring: red +, black -, yellow output
