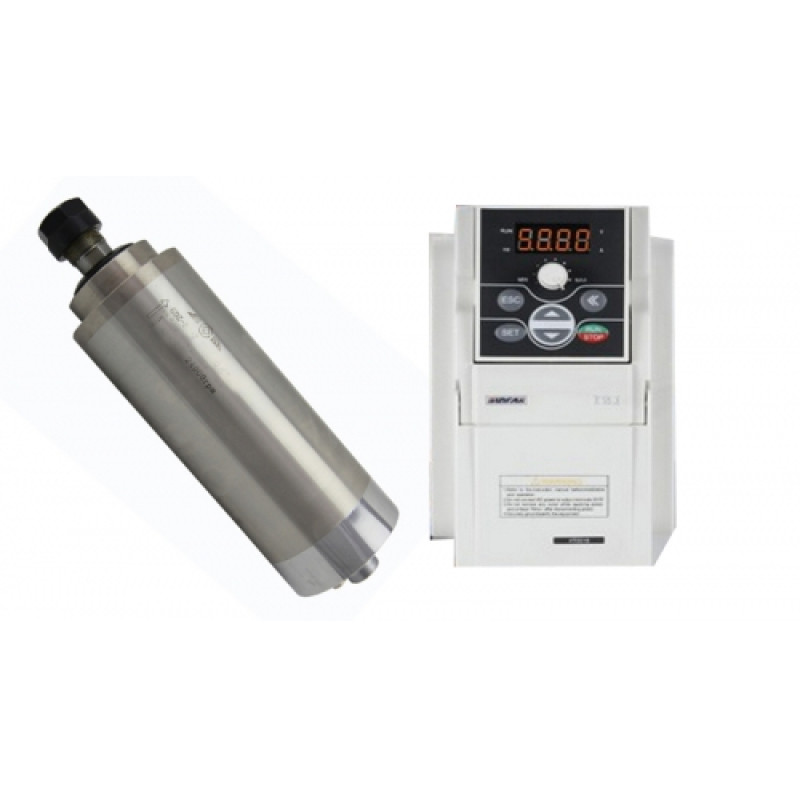

KIT - Water Cooled 220V / 1.5KW Spindle - GDZ80-1.5, ER16

The Kit contain:

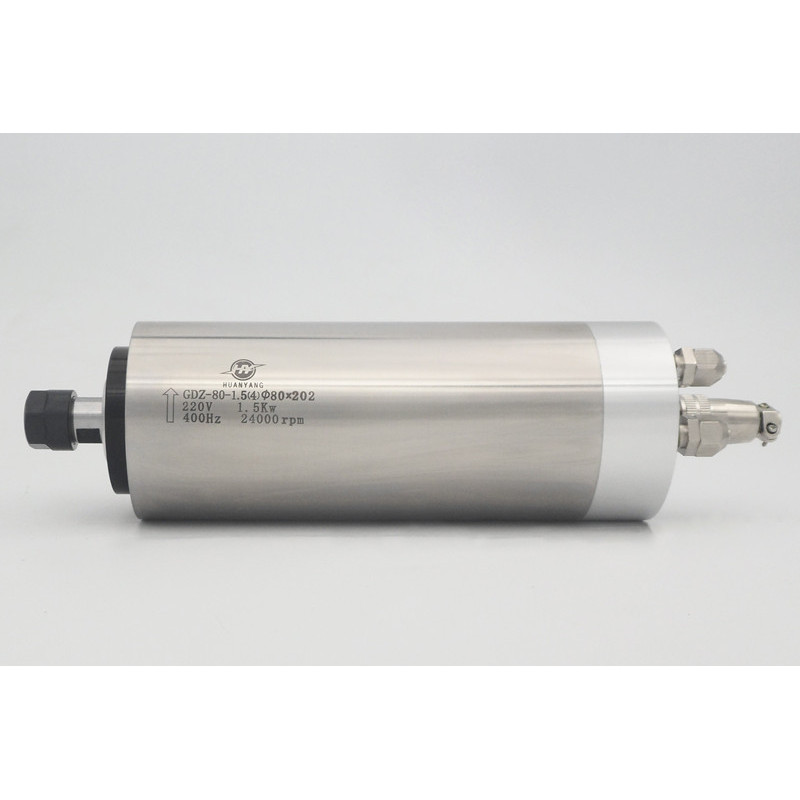

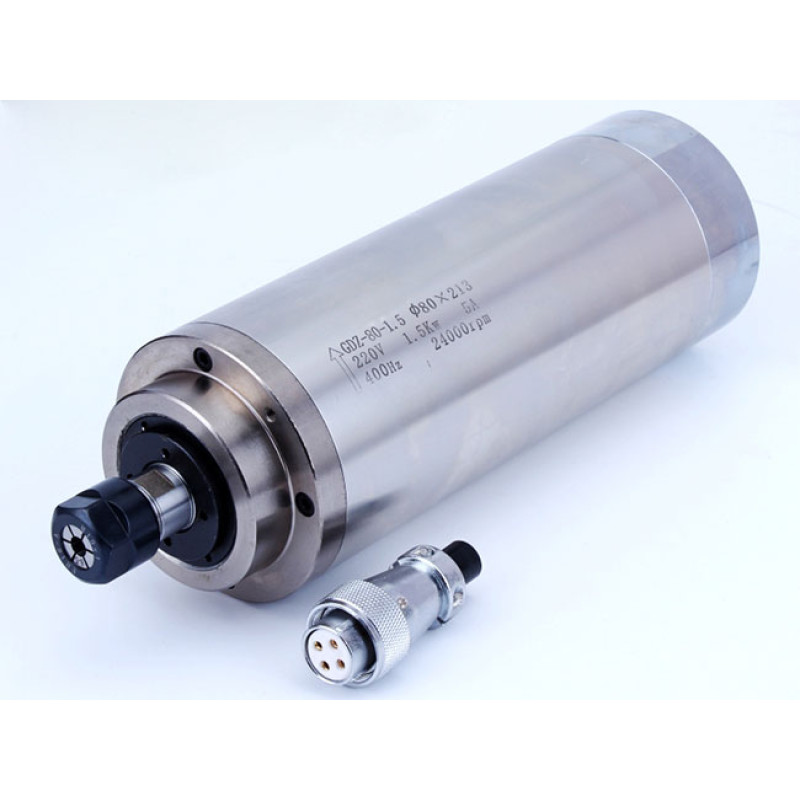

• Water Cooled 220V / 1.5KW Spindle Motor, 24000RPM, ER16 - GDZ80-1.5
• Inverter / speed controller 1.5Kw - E300-2S0015L
• Spindle Holder 80Cm
• Water Pump 80W
• Collet ER16 (3, 4, 5, 6, 7, 8, 9, 10 mm)

Motor Specifications :

• Model: GDZ80-1.5                   Speed: 24000RPM
• Voltage: 220V                         Current: 6A
• Frequency: 400HZ                   Weight: 4KG
• Length: 188mm                      Shaft end link: ER16
• Cooling : water cooling            Lubrication: grease
• Bearing Model: 2X7002CP4, 1X7000CP4 DT

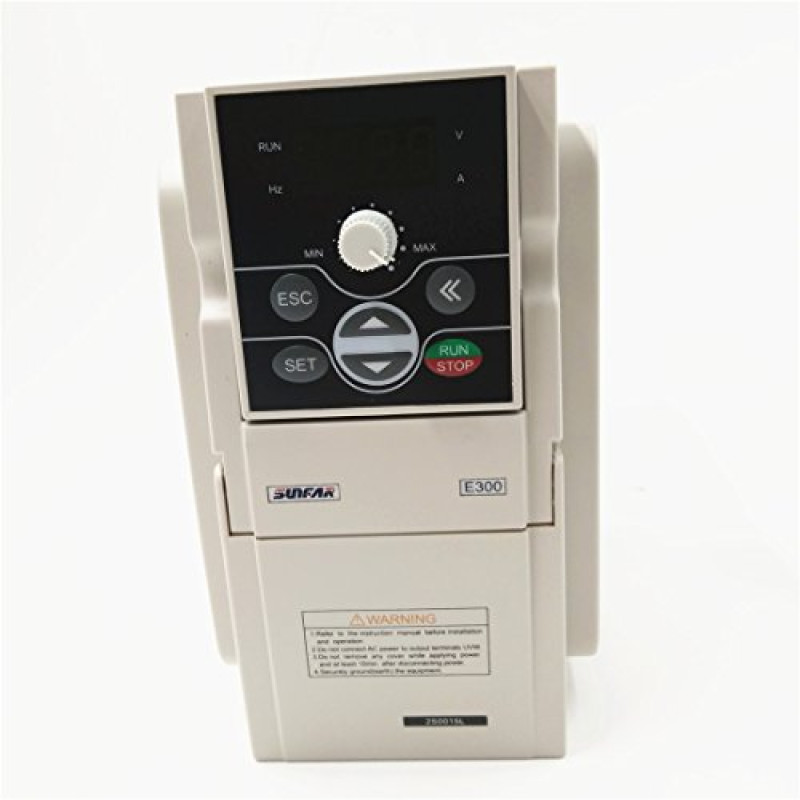

Inverter Specifications :

Model:220V-1.5KW E300-2S0015L
Brand: Sunfar
Input: 1-phase AC 220V ±20% 50/60Hz
Power: 1.5kw
Features:
1.User-defined V/F curve and torque boost function, support powerful cutting capability when processing
2.Output frequency up to 1000Hz, support the requirement of high-speed processing.
3.Highly adaptive to grid voltage, and can stand for ±20% fluctuation..
4.Particular self-adaptive control technology, allowing for automatic current and voltage limitation and under-voltage suppression during operation.
5.Configuration of RS485 communication interface, optional MODBUS protocol and SUNFAR self-defined protocol; with linkage synchronous control function, allowing for easily communicating inverters with PLC, industrial personal computers and other industrial personal equipments.
6.The panel supports hog plug, applicable for system integration for various applications.
Application:
Textile, food, transmission, ceramics, grinder, centrifugal machine, Engraving machine, etc.
