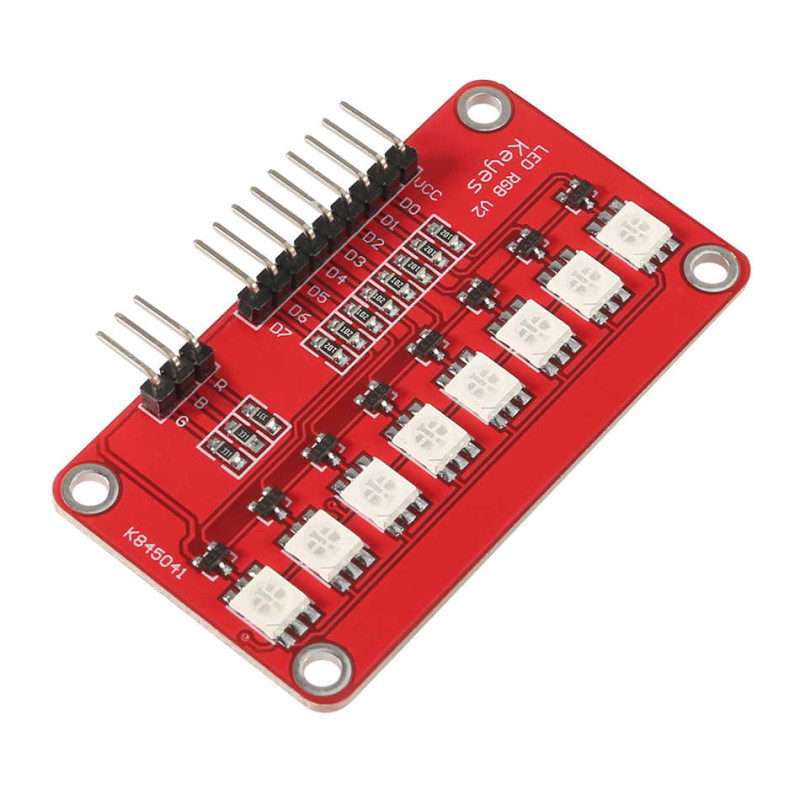

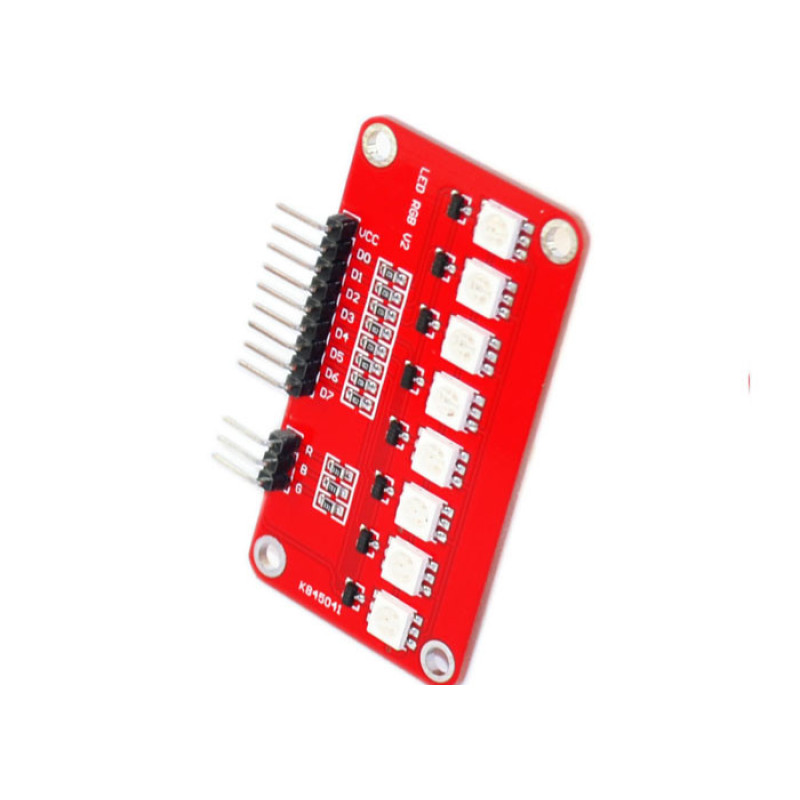

LED Module SCM Light Water For Arduino
Click Image for Gallery
Features:
- Excellent PCB design, very beautiful.
- 8 tri-phosphor (red, green and blue) full-color LED, scanning control mode.
- Different with digital tube control method, segment control the corresponding LED lights, bit control color.
- Different program can be generated different colors change effect.
- Suitable for a variety of platforms such as 51 / AVR / AVR / ARM / arduino
A demo with Arduino:
The 8-pin D0 ~ D7 respectively to control 8 LED, so as long as the corresponding digital connected with arduino pin (as long as we turn this experiment received 2 to 9 pin). Also it has three pin RGB, needs to connected with GND, connected with R is red light, connected with G is green light, B is blue light, connected the three pins simultaneously, they will all light up.
