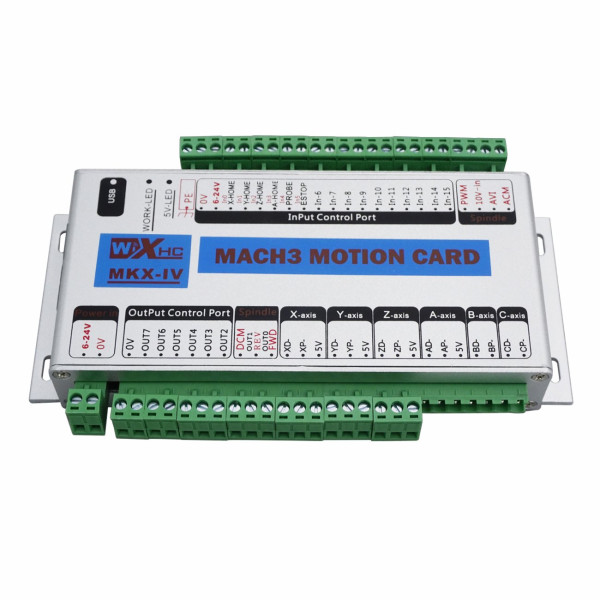

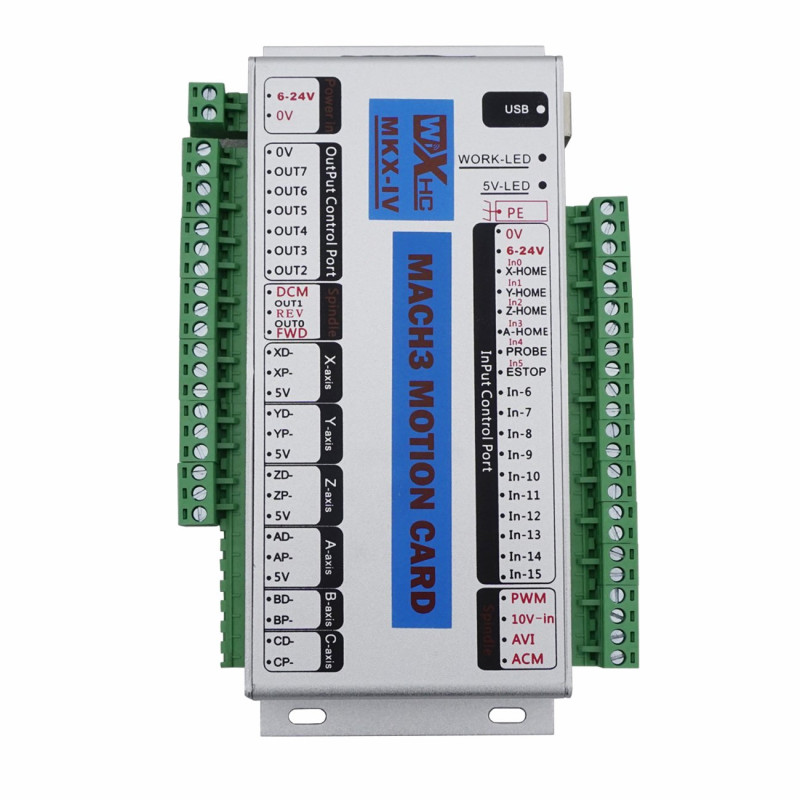

XHC-MK3 - MACH3, 3 Axis control card.

Features:
1. Support all versions of Mach3
2. Support system: Windows XP, 2000, Vista, 7. (not including Mac OS)
3. USB jack does not need to install the driver, plug and play under all versions of Windows.
4. Full support USB hot-swappable, USB connection status monitoring at any time. Under Mach3 working state, USB cable unplugs and then plugs in, but also the normal connection.
5. Supports 4-axis linkage.
6. Maximum step-pulse frequency is 2000 KHz, can connect servo driver and stepper driver.
7. The indicator light indicates various working status, such as USB connection, Mach3 connection and so on.
8. 16 input IO.
9. Speed testing function, the spindle actual speed displays on the Mach3 interface in real time.
10. Onboard isolated power supply, not need external power supply.
11. All IO port fully isolated, strong anti-interference, stable performance
12. Support XHC series of wireless electronic MPG, such as WHB04 MPG.
13. Support spindle speed PWM output; support spindle pulse and direction output; support spindle speed output from 0 to 10V analog voltage.

    Package Contents:

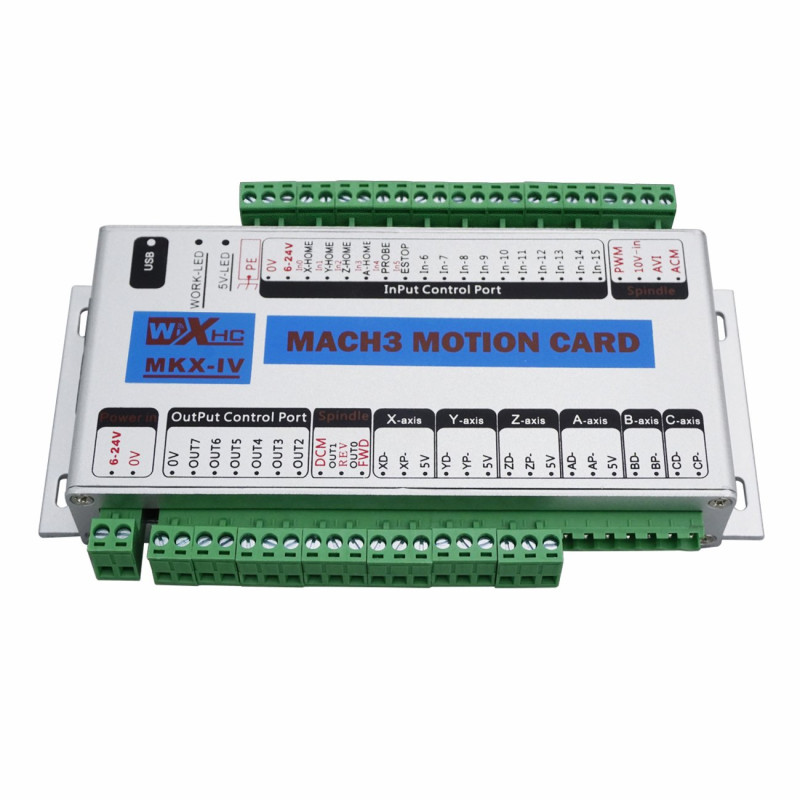

•      1 x CNC Controller XHC MK4

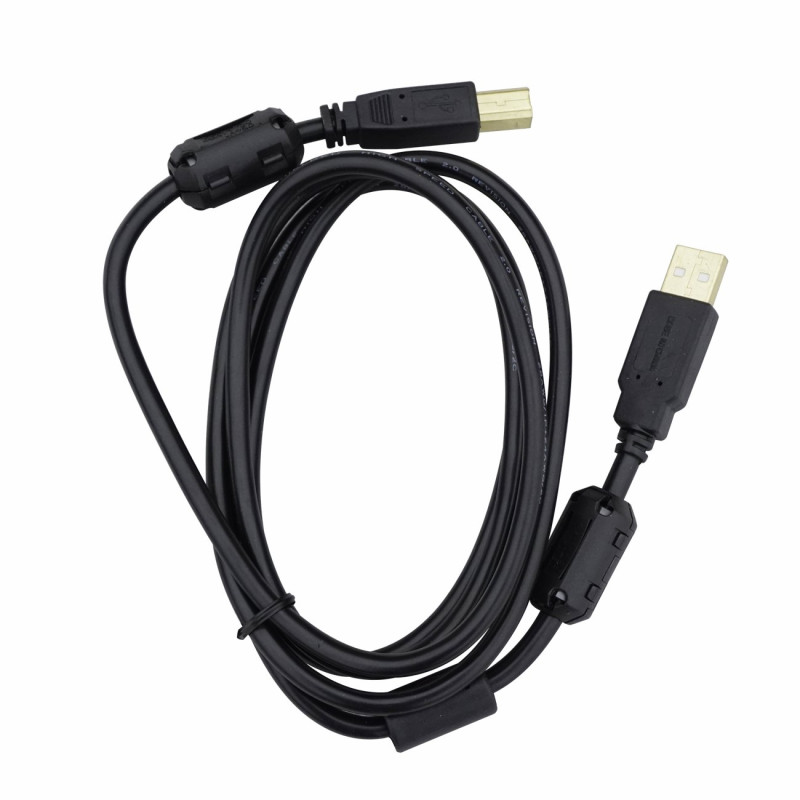

•      1 x USB Cable
•      1 x Manual
•      1 x CD

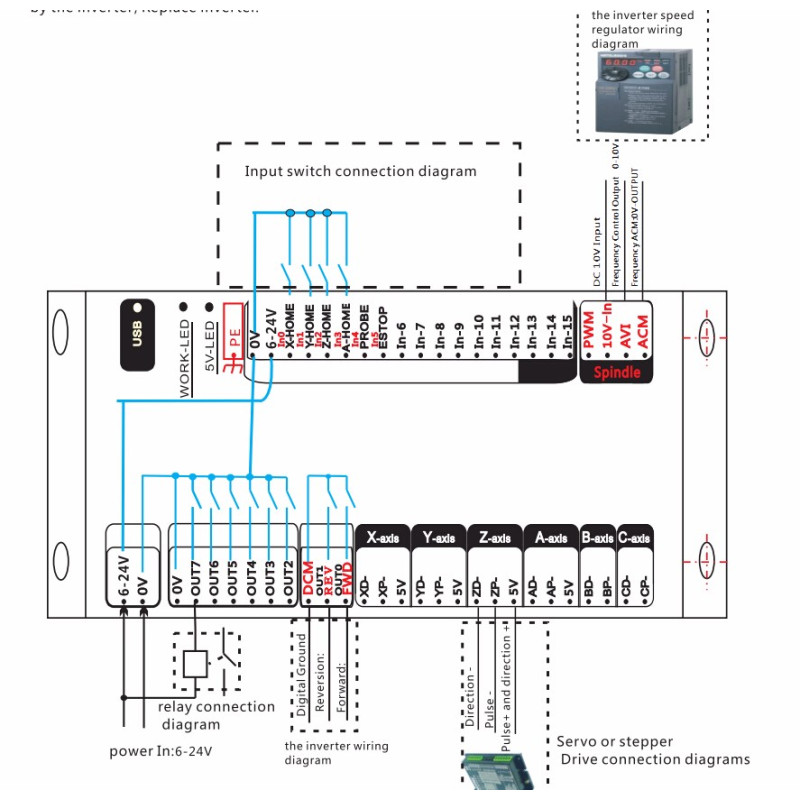

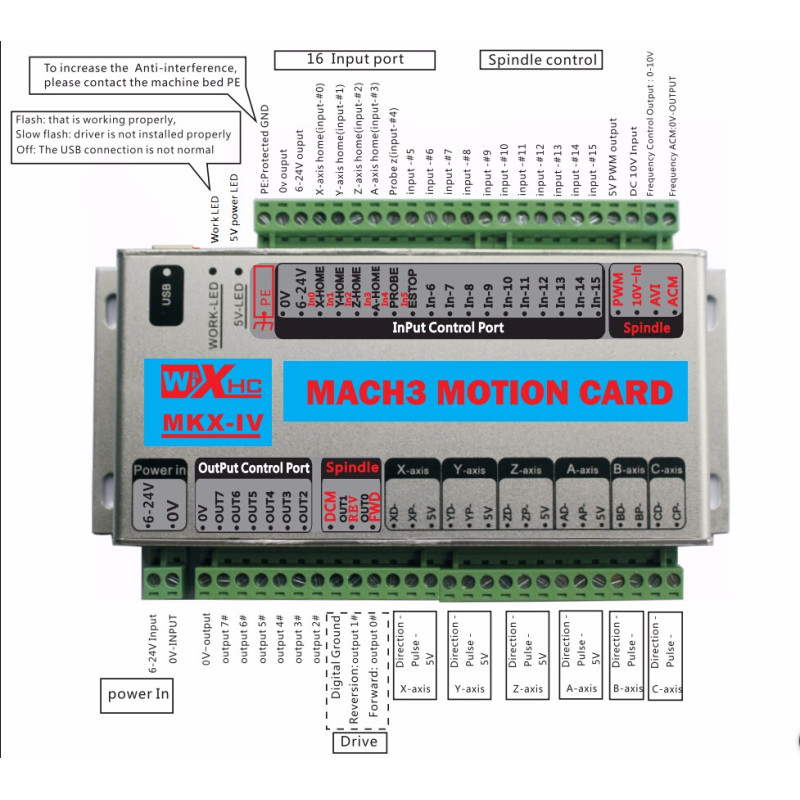

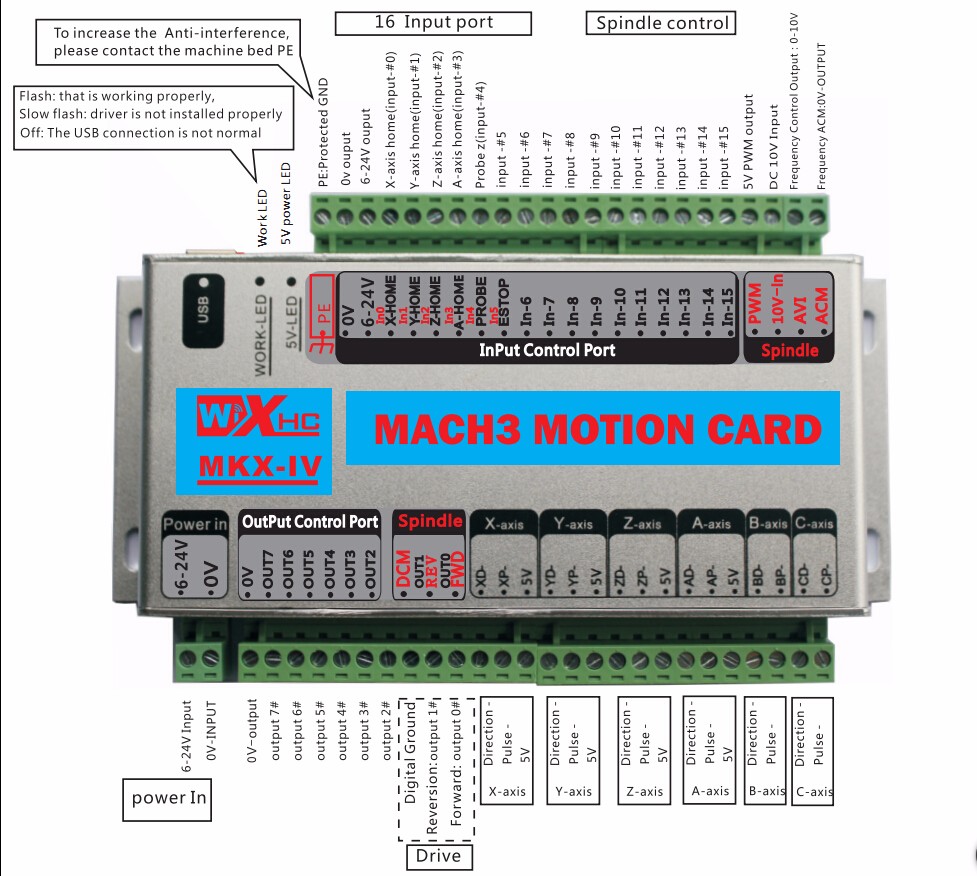

   Interface Schematics:

 Simple connection description

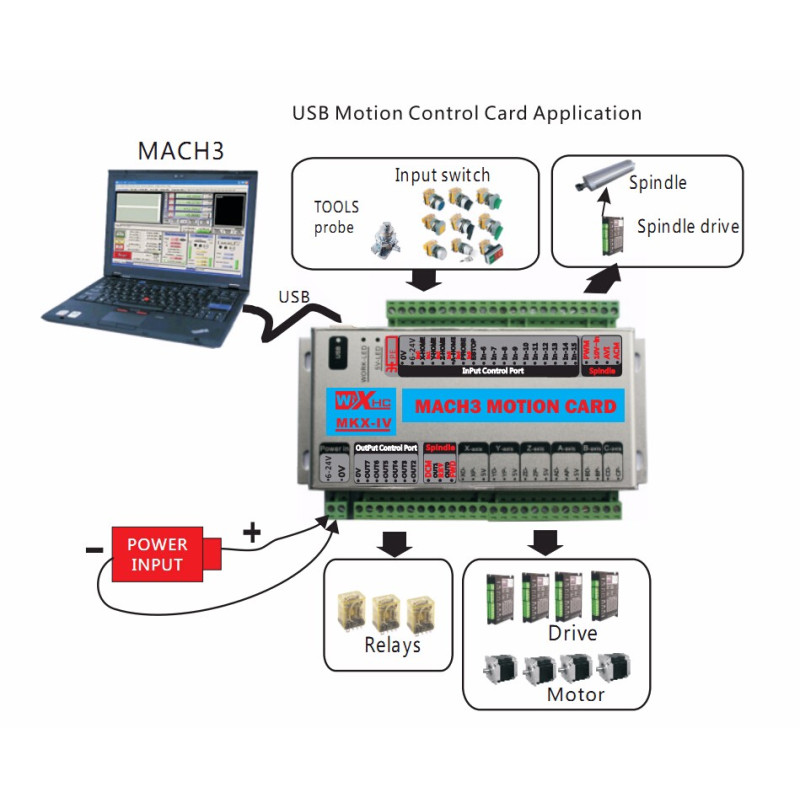

1.    Application Connection Diagram


2.    Motion control card Dimensions
