OpenBuilds Mini OX CNC Machine (Mechanical kit)
Click Image for Gallery

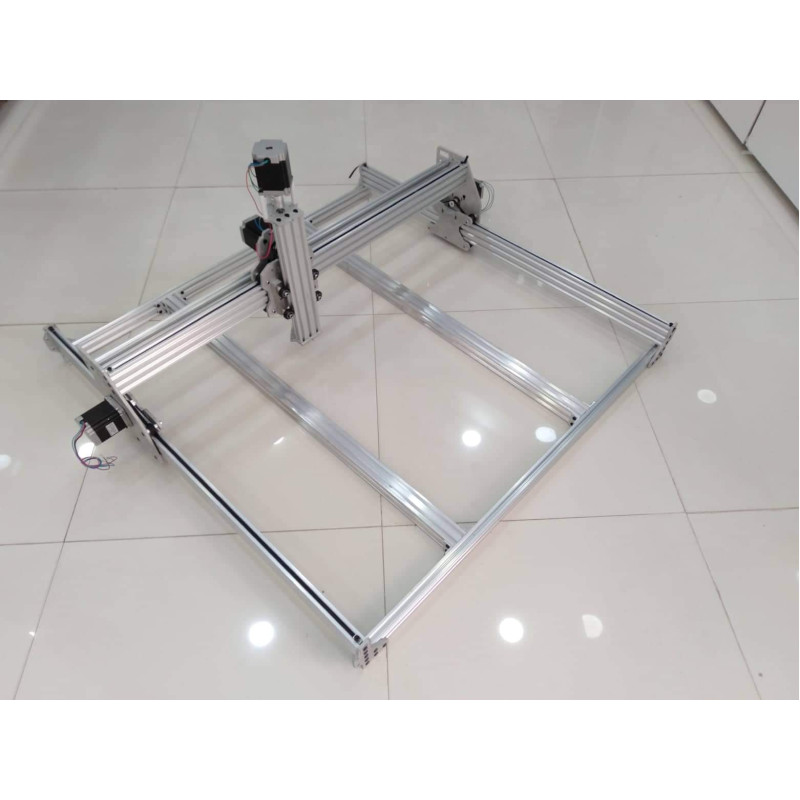

OpenBuilds Mini OX CNC Machine.
A strong easy to build shop CNC router that can be sized to suit your needs.
Many new features have been incorporated into the OX to make it a great router that is sure to inspire!

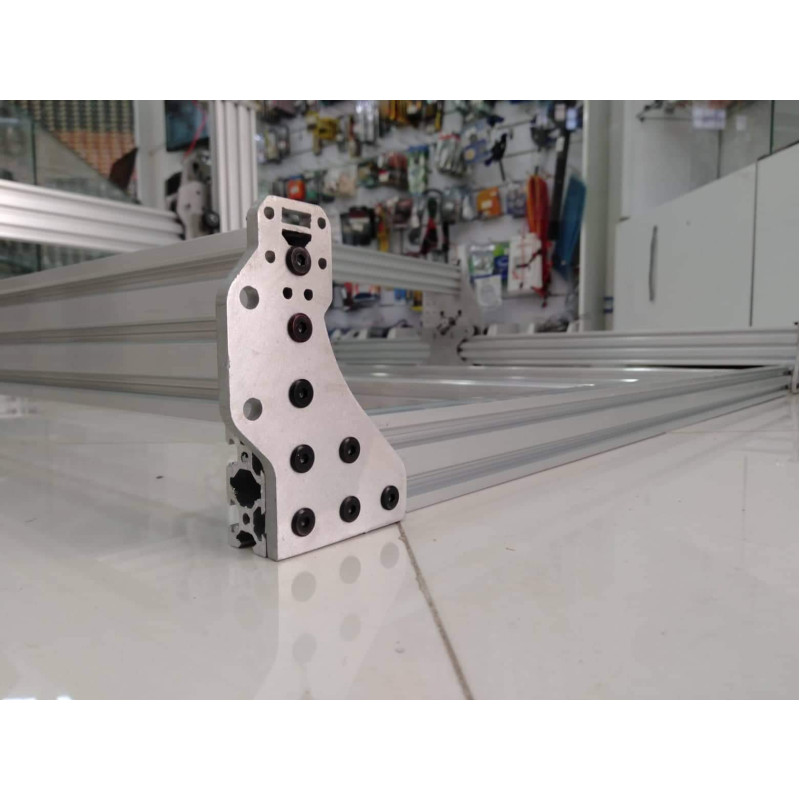

The OX hobby CNC machine makes full use of the excellent V-Slot Extrusion system. The X/Y-Axis uses the 20 x 60 mm size , reenforced with a 40 x 40 mm in the base for added rigidity.

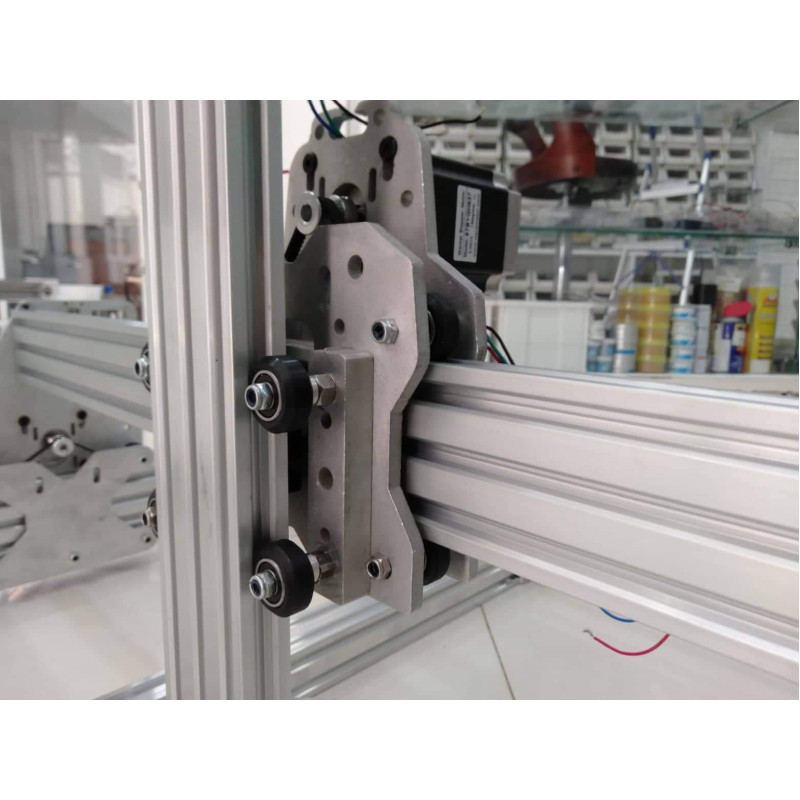

Our OX CNC kit uses a total of 18 Xtreme Solid V Wheels. These are manufactured from super hard polycarbonate, this reduces wheel compression, and keeps wear to a minimum.
TECHNICAL SPECIFICATION :
-
Frame Size : 1000 x 1006mm
-
Working Area : 820 x 775mm
-
Z Height : 300mm ( 150mm )
-
Drive System : X & Y GT2 Timing Belts. Z ACME Lead Screws
-
Linear Guides : Polycarbonate wheels on anodised V-Slot Extrusion.
-
Motors : NEMA23 Stepper Motors (X, Y & Z)
-
Accuracy : 0.10 – 0.20mm
