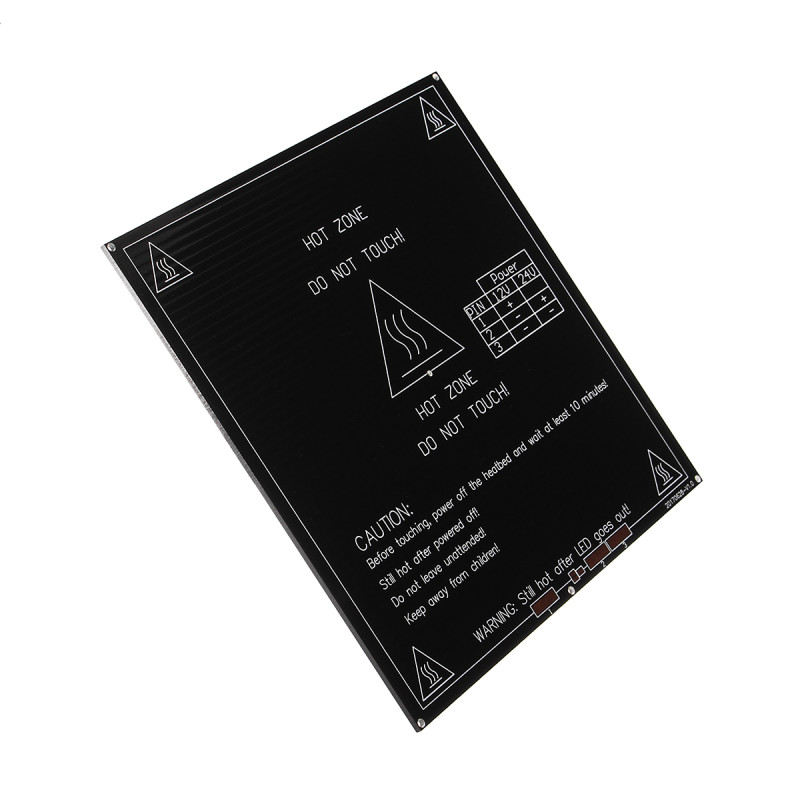

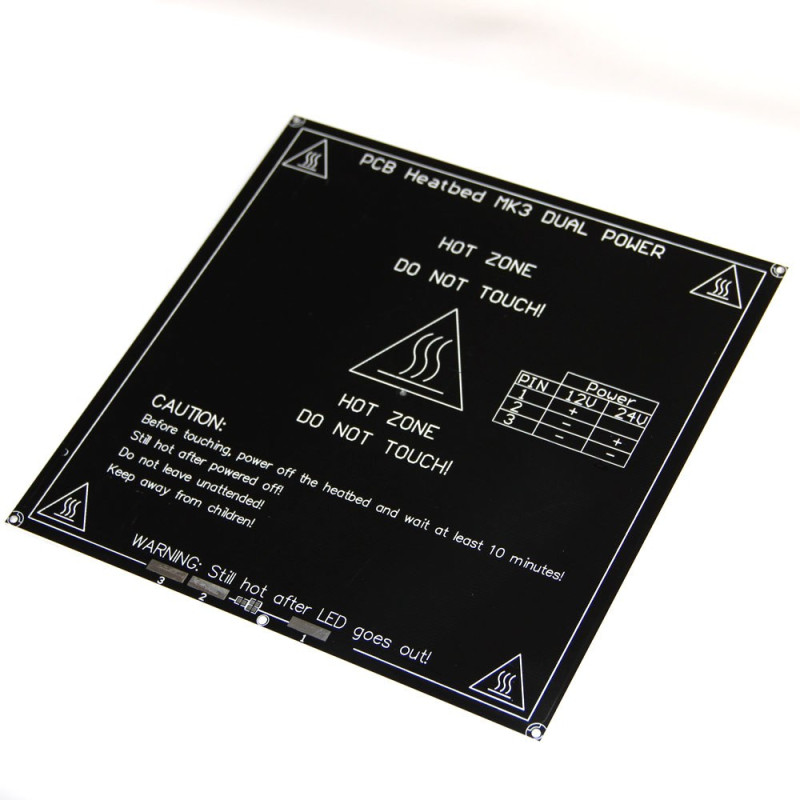

3MM MK3 Aluminum Board PCB Heat Bed 214*214mm
Click Image for Gallery
Specifications:
- 1 layer 35μm copper
- Voltage: 12/24V
- Resistance:
- 1.4-1.6 Ohm at 12V
- 5.0-5.4 Ohm at 24V
- Max. Temp: 180° C
- Heating Time: 24V reaches 100° C in 2 minutes
- Dimensions: 215 x 215 x 3mm
- Weight: 363g
- Colour: Black with White Mask/Text
- MK3 can choose 12 v and 24 v two voltage,
- 12 V: one line thread cross 1, another cross 2, 3
- 24 V: one line thread cross 2, another cross 3 (1 don't need to pick up).
- The new circuit, whether meet the 12 v or 24 v, the power is stable.
