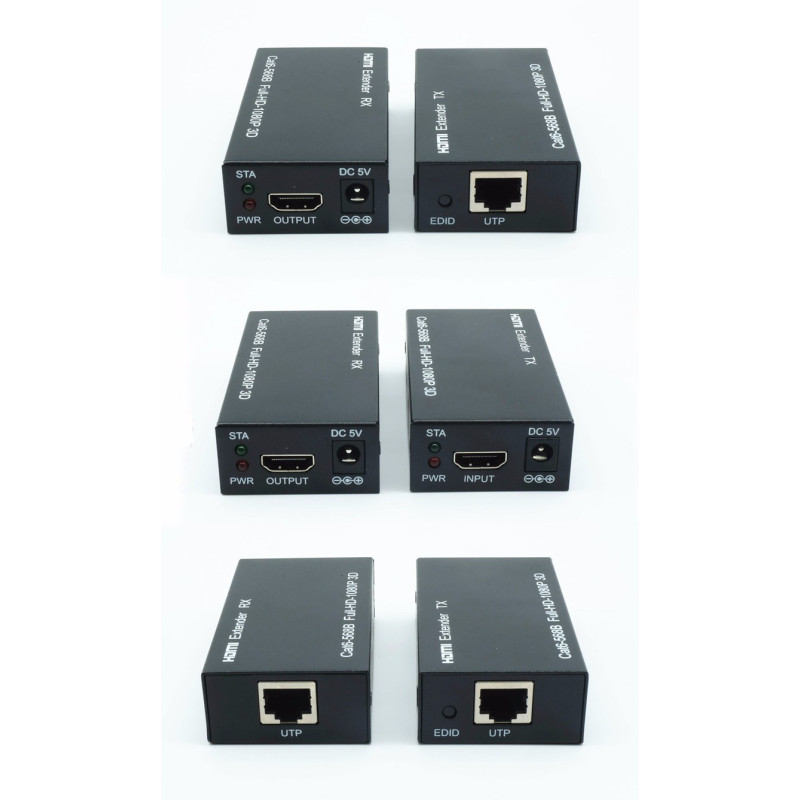

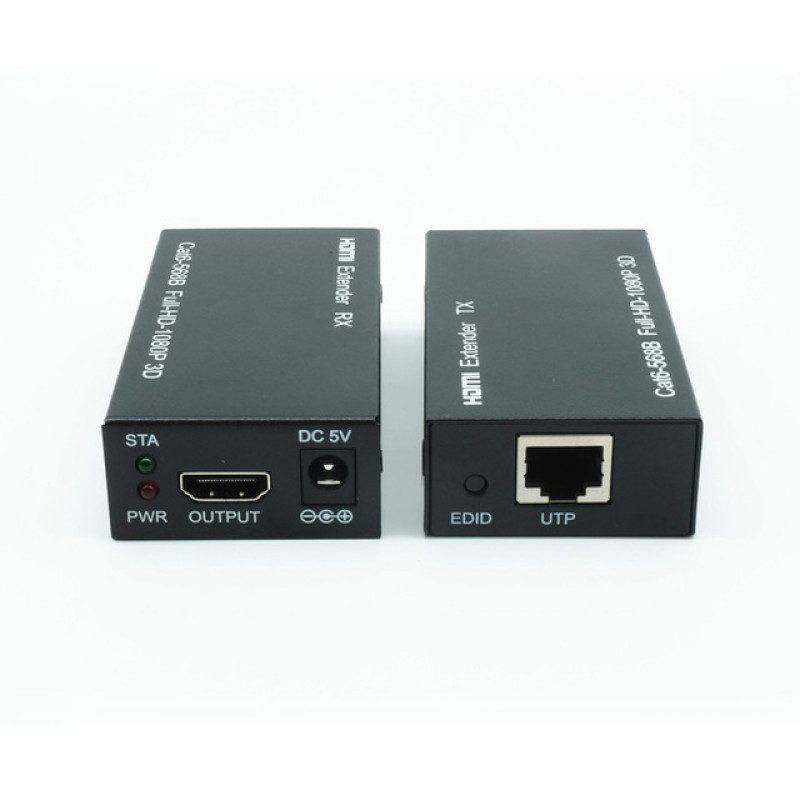

HDMI Extender HDMI Transmitter Receiver via Cat6 50m

Introduction

Used for a pair extension of this HDMI CAT6 cable to extend HD signal up to 60 meters,

and can achieve 1080P, which not only broke the HDMI cable transmission length limitations,

but also more convenient and flexible, the majority of customers are more cost savings. The

production equipment company providing solutions for the following applications: such as

noise, limited transmission distance and safety of the place, data center control, information

distribution, conference room presentations and teaching environment and corporate

training sites.

Our devices offers solutions for noise, space and security concerns, data center control,

information distribution, conference room presentation, school and corporate training

environments.

FEATURES

Support HDMI 1.3 protocol

HDCP 1.2 protocol compliant

Support 3D

Support video input : 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i

Signal transmission: Single cat-6e or cat-6(recommended) cable up to 60 meters

Support video output : 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i

Audio format support : DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD.

Support up to 5metres AWG26 cable length between extender and source & sink

    device

No loss of quality

 Package Contents

 Before attempting to use this unit, please check the packaging and make sure the

following items are contained in the shipping carton:

 1)  Main unit  1 Sender

 2)  Main unit  1 Receiver

 3)  Two pieces of 5V DC Power Supply.

 4)  User’s Manual

CONNECTING AND OPERATING

1.Connect one HDMI 1.3 cable up to 20 metres between source device and TX Extender.

2.Connect one HDMI 1.3 cable up to 20 metres between sink device and RX Extender

3.Connect single cat-5e or cat-6(recommended) cables up to 60 metres instead of HDMI

calbe between TX and RX Extender

4.Connect 5V power supply to the HDMI CAT60RX&TX Extender
