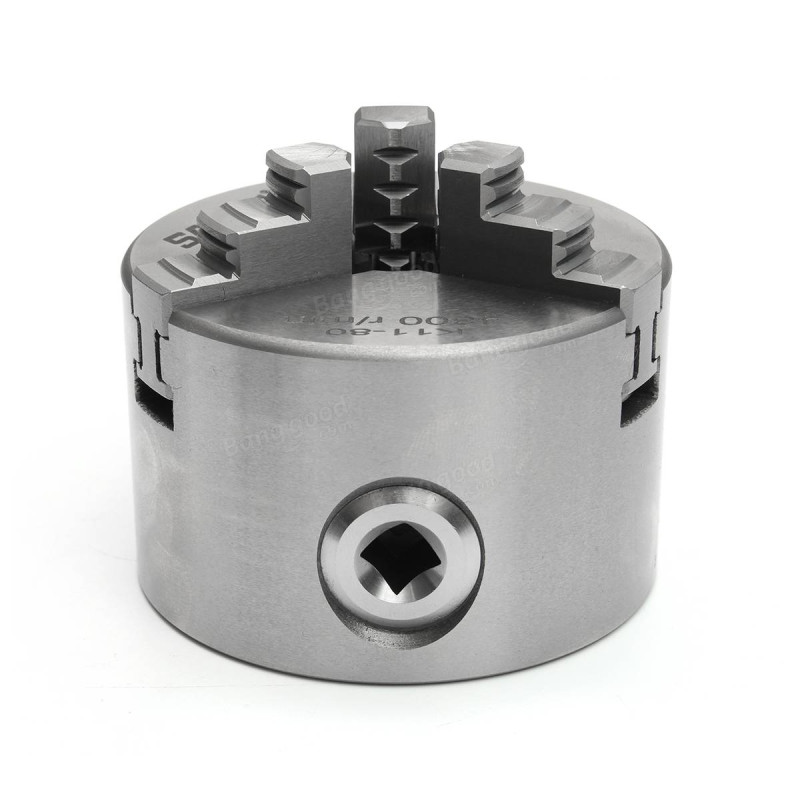

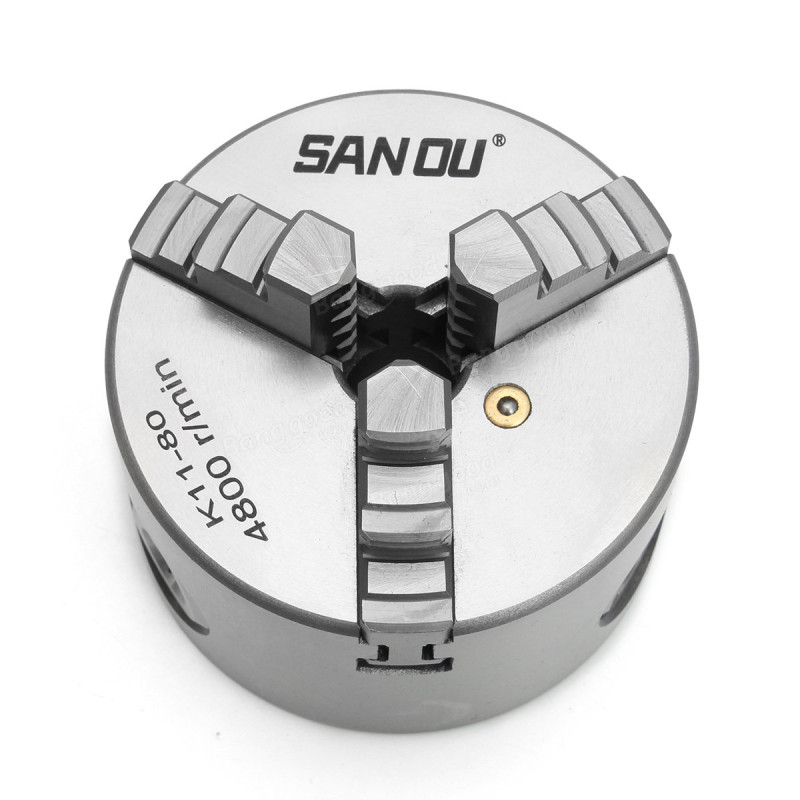

SANOU 3 Jaw Lathe Chuck K11-80 80mm
Click Image for Gallery
Description
3 Jaw Lathe Chuck K11-80 80mm Manual Chuck Self-centering Lathe Parts
Specification:
Material: Metal
Chuck diameter: 80 (mm)
Chuck aperture: 16 (mm)
Clamping size range: 2-22 (mm)
Stretch size range: 25-70 (mm)
Centering accuracy 0.07 (mm)
Quantity: 1pc
Quantity: 1pc
Features:
- Applicable machine tools: lathe materials
- Suitable For: Fixed solid or hollow circle material, triangular material, hexagonal material.
- The jaws for K11A,K11C,K11D,K11E chuck are composed of two-piece jaws,
- they can perform as eiher internal or external jasws throgh adjustment
- The jaws for K11A,K11D,K11E chucks conform to ISO3442 standard.
- Model K11 chucks are supplied with traditional two-piece jaws

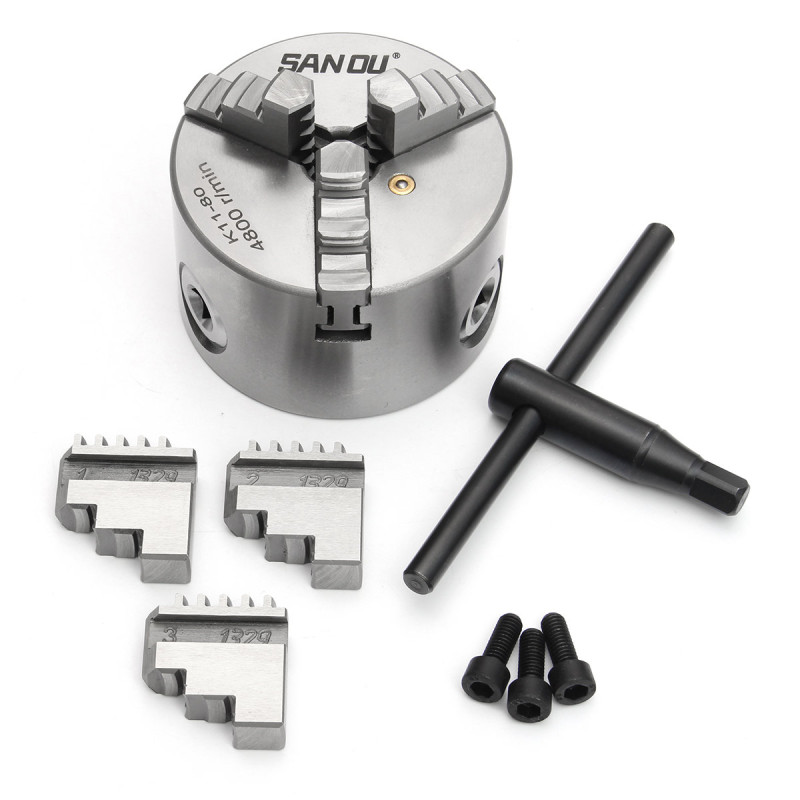

Package Included:
- 1pc x Three Jaw Chuck
