C-Beam™ Gantry Plate - XLarge

Out Of Stock C-Beam™ Gantry Plate - XLarge

Description :

C-Beam Gantry Plate - XLarge

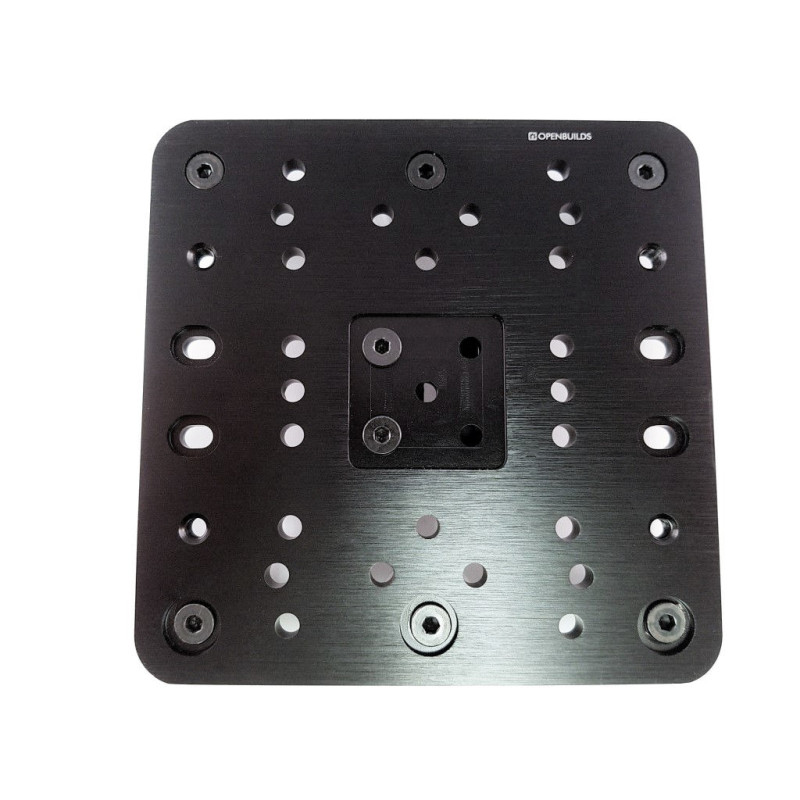

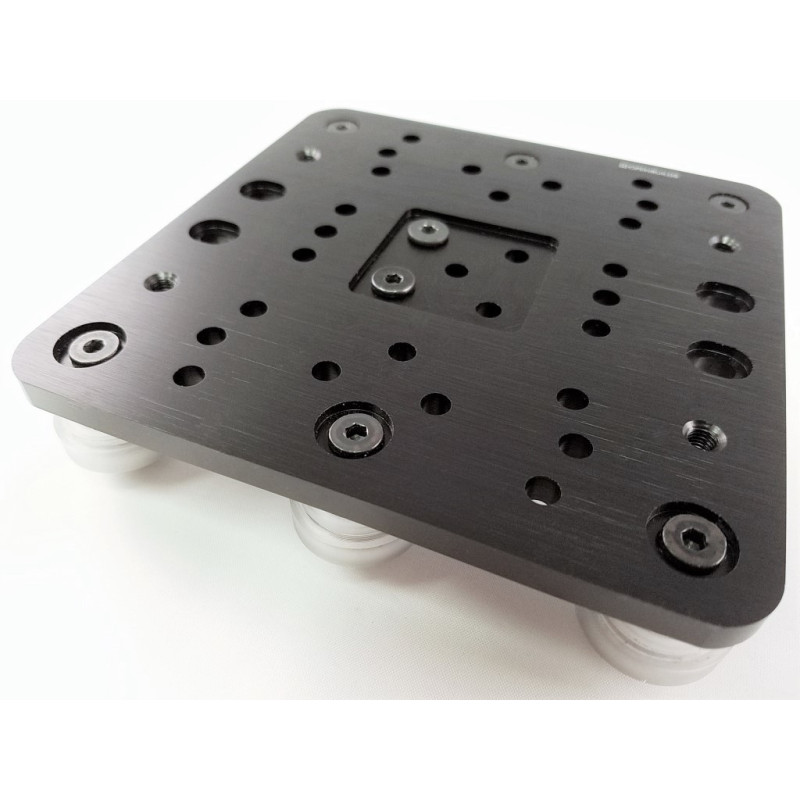

The XLarge C-Beam gantry plate was designed to be super strong universal gantry solution.



  • A strong 6mm thick aluminum 6061- T5 plate
  • Mates at 90 degrees to another plate allowing for the best in an XY and Z system
  • Shiny black anodized for a finished look
  • Recessed screw pockets ensure flush mounts
  • Includes pre-tapped mounting holes for a clean 90 degree mounting solution
  • Adjustable end holes allow for creating a very accurate and reliable double Nut Block system
  • Center recess allow for single nut block mounting
  • Up to 6 wheel mounting configuration for secure and precise rail lock in
  • The wide wheel spread along the axis makes for a very sturdy axis.



A simple plate that can be used on every axis creating a one plate does it all system!





render-larger-plate-c-beam-idea-keyshot-2.180.jpg\

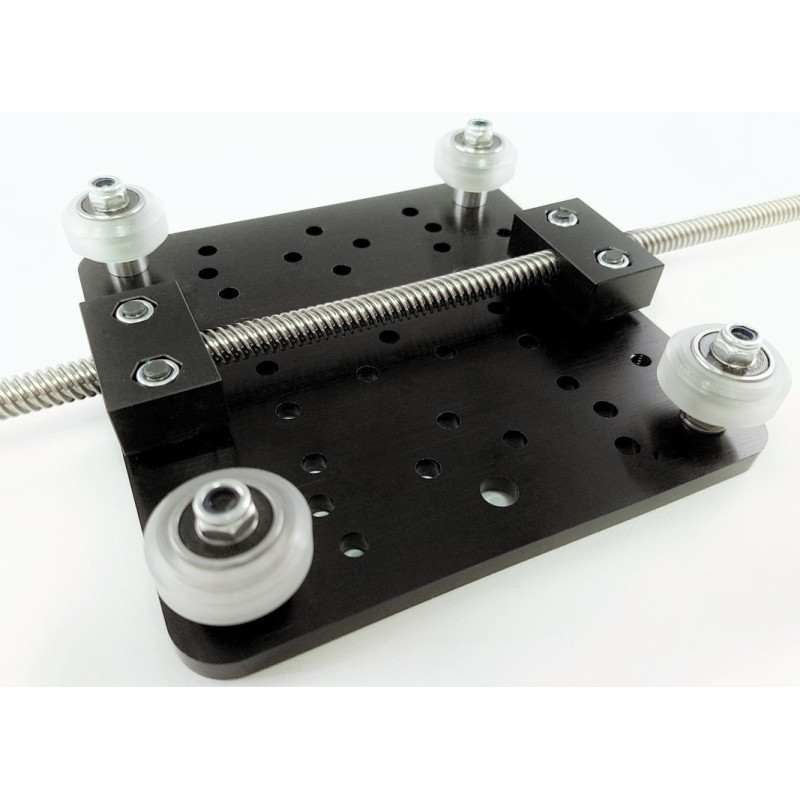

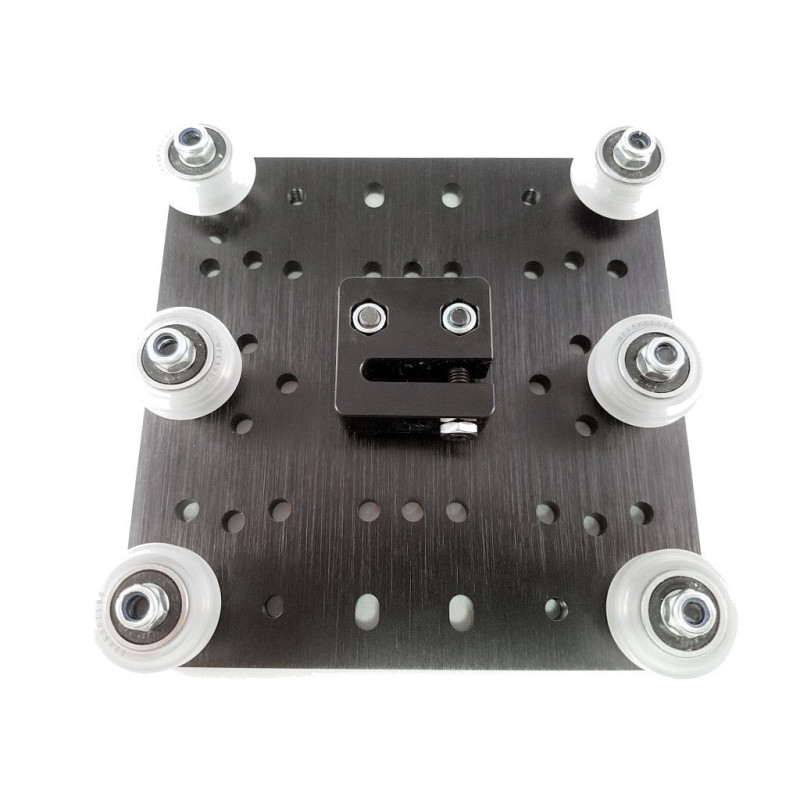

Example plate configurations. This plate is very modular and so there are many configurations possible!








Models available in 3DWarehouseSketchUp and SolidWorks and other CAD formats
