Mini V Gantry Plate™
Click Image for Gallery
Description :

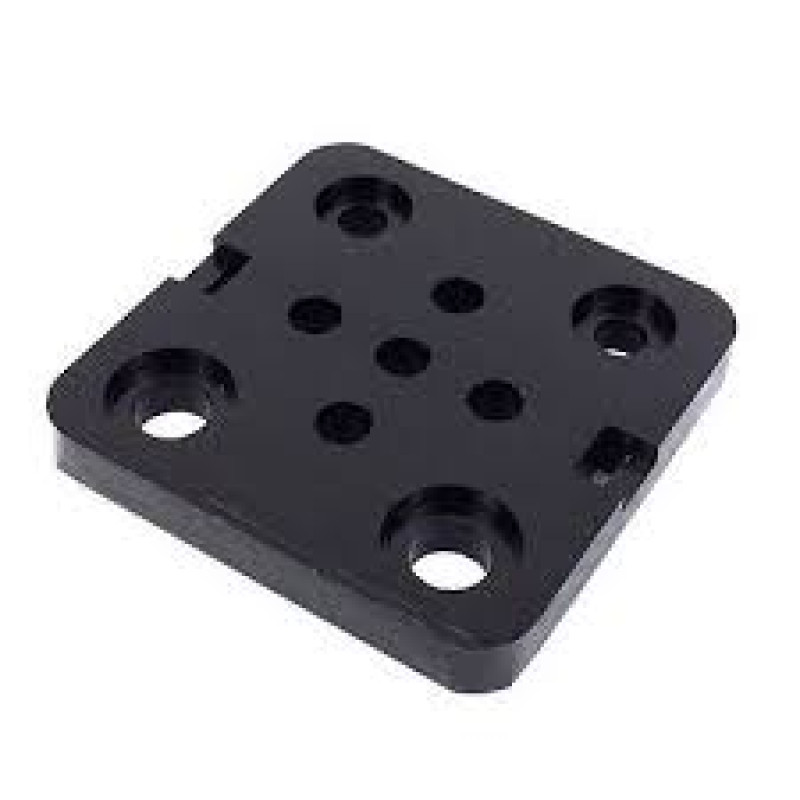

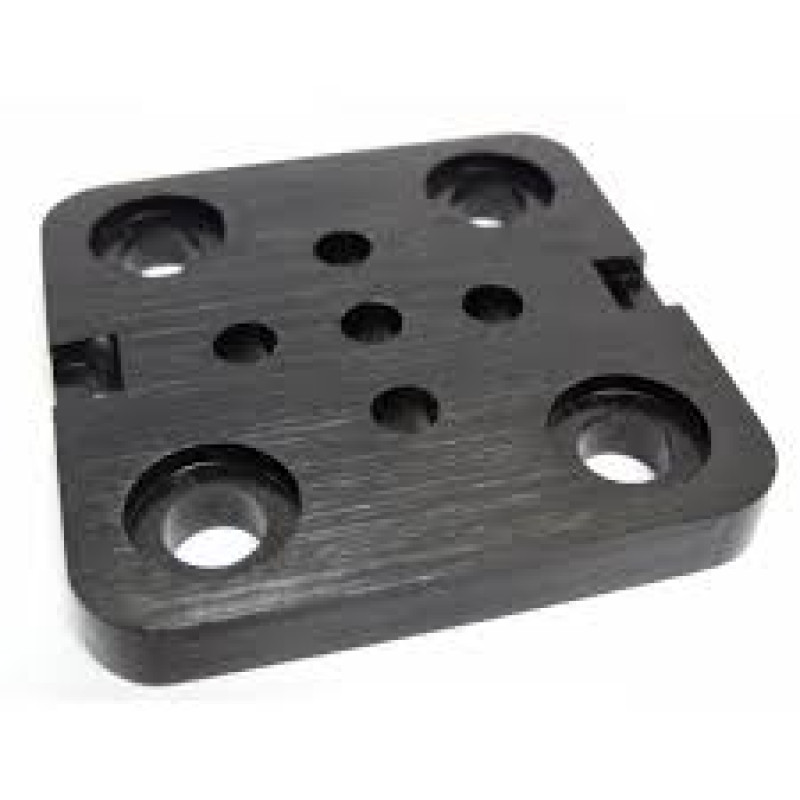

Mini V Gantry Plate

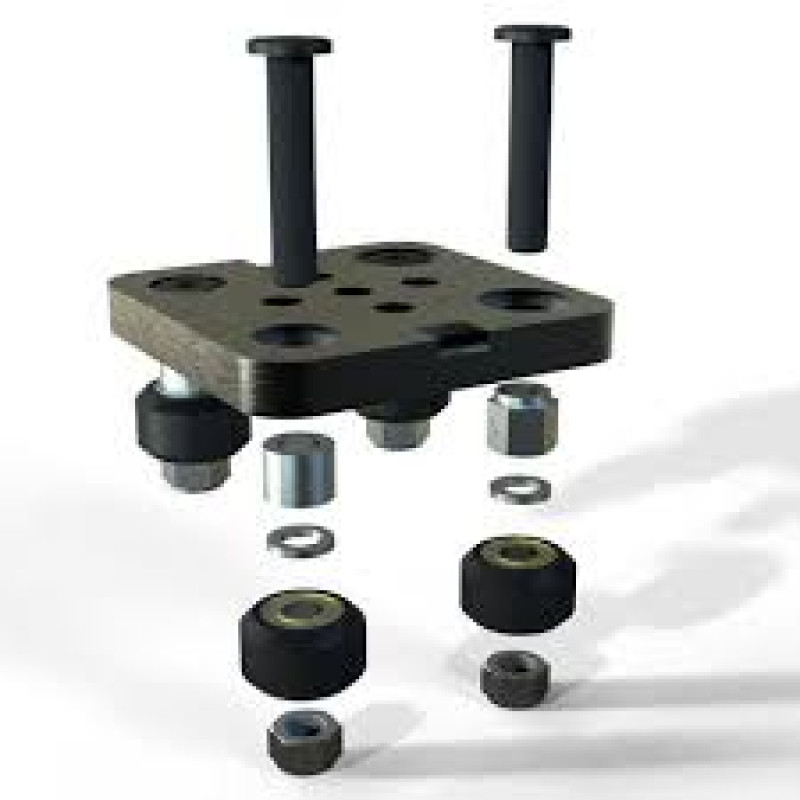

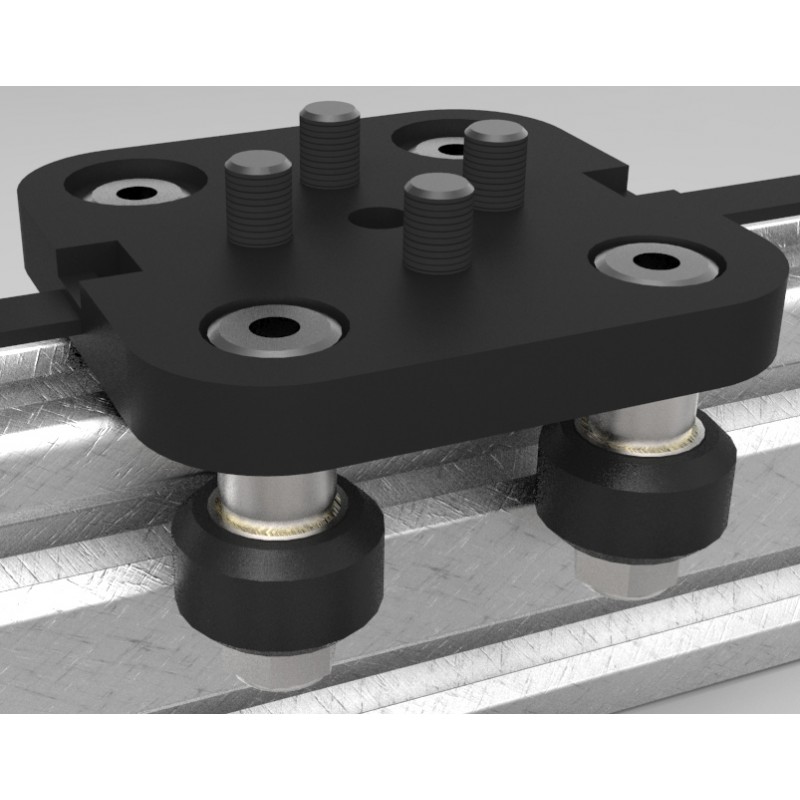

This is the awesome little plate for the Mini V linear guide system using the OpenBuilds Mini V Wheels and the Xtreme Mini V Wheels.
It's super strong and has a small form factor.
This plate has the mounting pattern to allow for end to end mounting that makes up the Mini V system. This opens the door to endless machine creation!
Part Details
Dimensions: 50 x 50 x 6.35mm 'thick'
6063-T6 Aluminum Black Anodized Brushed Finish
Belt loop side notched for 1/4" belt
Recessed Screw holed for post flush mount
Download Models to use in your builds

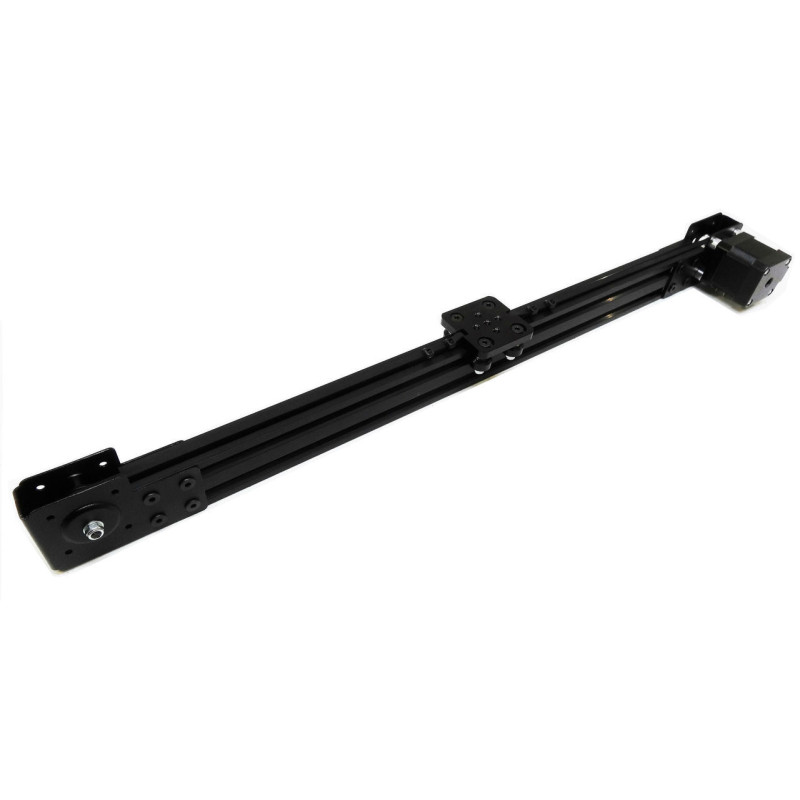

Belt Driven mini V example models
Models available in SketchUp and SolidWorks and other CAD formats
