GT3-20 Tooth Timing Pulley 6.35mm for belt 6mm
Click Image for Gallery
Product Description

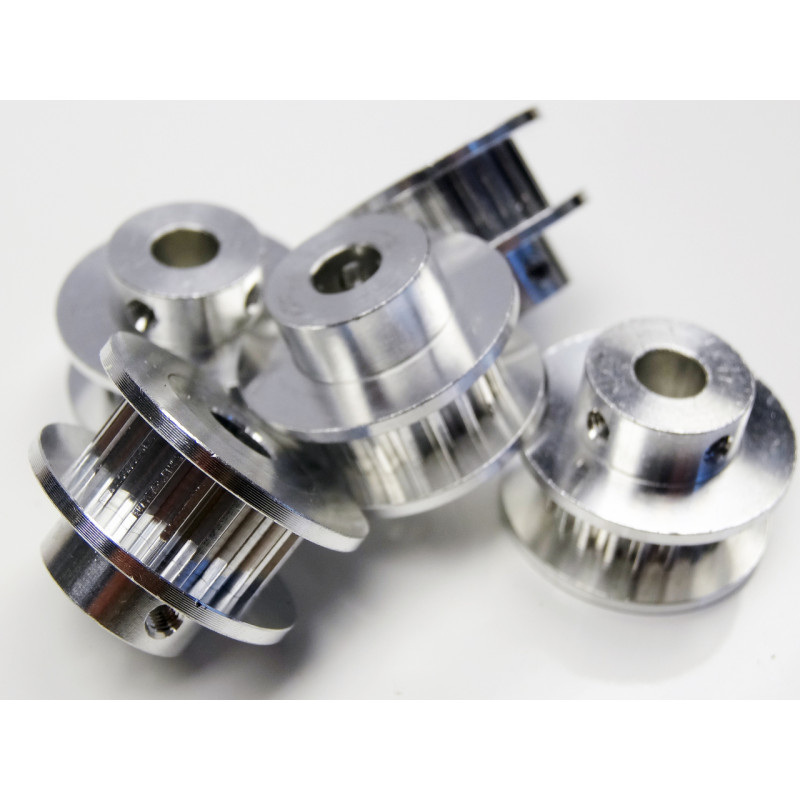

This is a high quality aluminum timing pulley that is perfect for your automation projects! It has more aggressive teeth than it's little brother the GT2 so this can be used in higher torque applications.
This pulley has a 6.35mm (1/4") bore size which fits the Nema 23 Stepper Motors.
- 3GT (GT2-3M)
- 20 Tooth
- Aluminum
- Up to 6mm/1/4" belt width
- 6.35mm Bore
- 2 flanges with hub

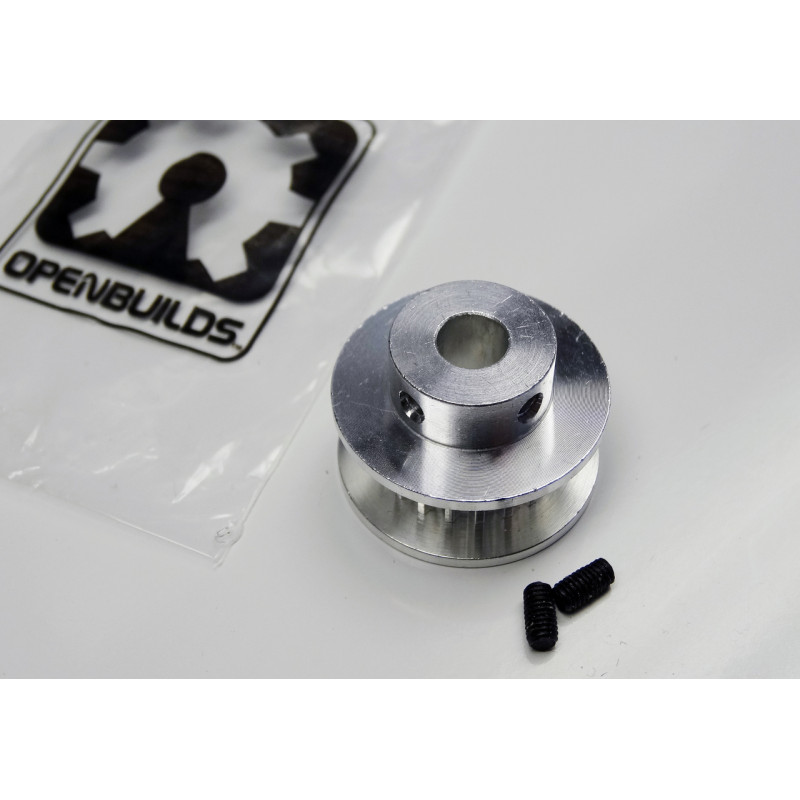

- Set Screws included (M3 - 5mm - 1.5mm Hex)
- Pulley Diameter 18.3mm ID 6.35mm(bore) H 17.6mm Overall OD 21.5mm
Use with 3GT (GT2-3M) Belt sold by the foot or by the spool.
