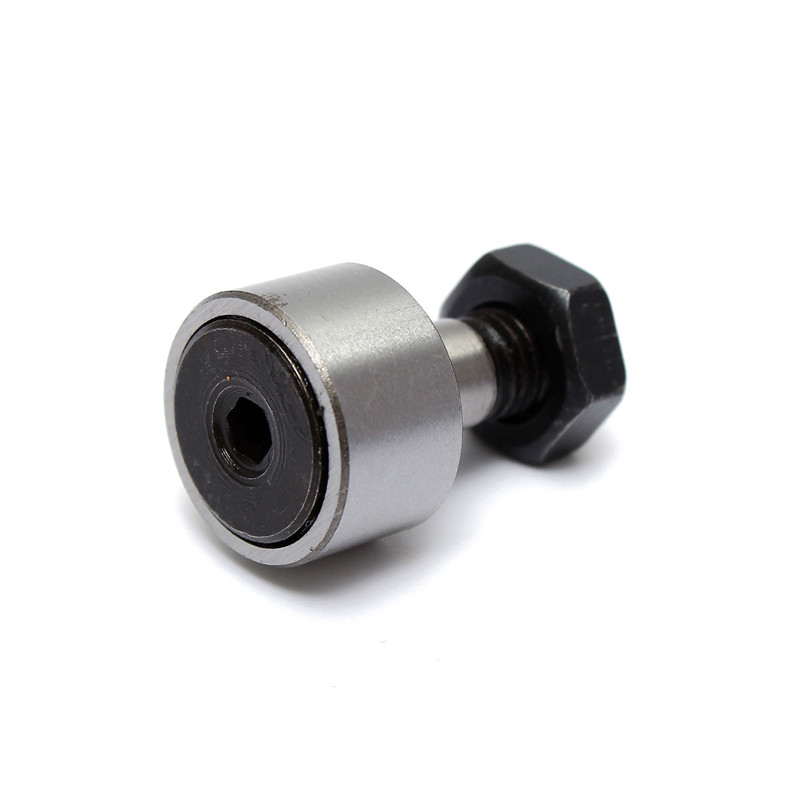

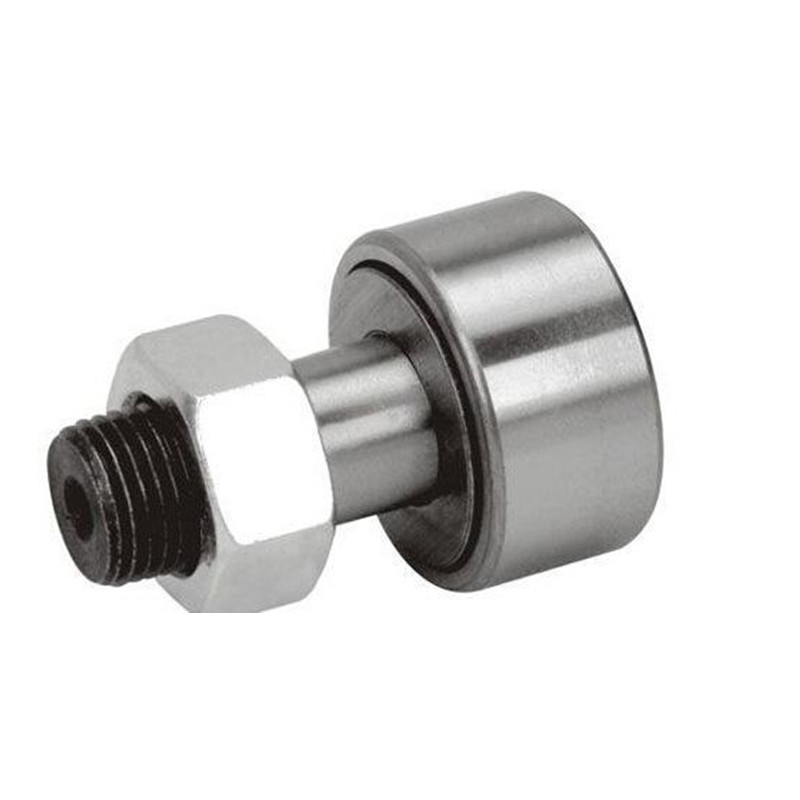

Bolt Wheel Needle Bearing KR16
Click Image for Gallery
Product Description
Product name: KR series Bolt wheel needle bearing
Specifications:
1) Bearing stand type:
KR13
KR16
KR19
KR22
KR26
KR30
KR32
KR35
KR40
KR47
KR52
KR62
KR72
KR80
KR85
KR90
2) Bore diameter range: 13mm to 90mm
3) Develop nonstandard types according to customer's requirement
4) Packing: Plastic tube packing or individual box packing
| Type |
Dimension mm |
|||||||||||
| New |
Old |
D* |
C |
G |
d1 |
G1 |
Bmax |
B1ax |
B2 |
B3 |
C1 |
ramin |
| KR13 |
CF5 |
13 |
9 |
M5×0.8 |
5 |
7 |
10 |
23 |
13 |
- |
0.5 |
0.3 |
| KR16 |
CF6 |
16 |
11 |
M6×1 |
6 |
8 |
12.2 |
28.2 |
16 |
- |
0.6 |
0.3 |
| KR19 |
CF8 |
19 |
11 |
M8×1.2 |
8 |
10 |
12.2 |
32.2 |
20 |
- |
0.6 |
0.3 |
| KR22 |
CF10 |
22 |
12 |
M10×1.25 |
10 |
12 |
13.2 |
36.2 |
23 |
- |
0.6 |
0.3 |
| KR26 |
CF10K |
26 |
12 |
M10×1.25 |
10 |
12 |
13.2 |
36.2 |
23 |
- |
0.6 |
0.3 |
| KR30 |
CF12 |
30 |
14 |
M12×1.5 |
13 |
13 |
15.2 |
40.2 |
25 |
6 |
0.6 |
0.6 |
| KR32 |
CF12K |
32 |
14 |
M12×1.5 |
12 |
13 |
15.2 |
40.2 |
25 |
6 |
0.6 |
0.6 |
| KR35 |
CF16 |
35 |
18 |
M16×1.5 |
16 |
17 |
19.6 |
52.1 |
32.5 |
8 |
0.8 |
0.6 |
| KR40 |
CF18 |
40 |
20 |
M18×1.5 |
18 |
19 |
21.6 |
58.1 |
36.5 |
8 |
0.8 |
1 |
| KR47 |
CF20 |
47 |
24 |
M20×1.5 |
20 |
21 |
21.6 |
66.1 |
40.5 |
9 |
0.8 |
1 |
| KR52 |
CF20K |
52 |
24 |
M20×1.5 |
20 |
21 |
25.6 |
66.1 |
40.5 |
9 |
0.8 |
1 |
| KR62 |
CF24 |
62 |
29 |
M24×1.5 |
24 |
25 |
30.6 |
80.1 |
49.5 |
11 |
0.8 |
1 |
| KR72 |
CF24K |
72 |
29 |
M24×1.5 |
24 |
25 |
30.6 |
80.1 |
49.5 |
11 |
0.8 |
1 |
| KR80 |
CF30 |
80 |
35 |
M24×1.5 |
30 |
32 |
37 |
100 |
63 |
15 |
1 |
1 |
| KR85 |
CF30K |
85 |
35 |
M30×1.5 |
30 |
32 |
37 |
100 |
63 |
15 |
1 |
1 |
| KR90 |
CF30J |
90 |
35 |
M30×1.5 |
30 |
32 |
37 |
100 |
63 |
15 |
1 |
1 |
| KR32S |
|
32 |
24 |
M10×1.5 |
12 |
19 |
26 |
54 |
30 |
/ |
0.6 |
0.6 |
