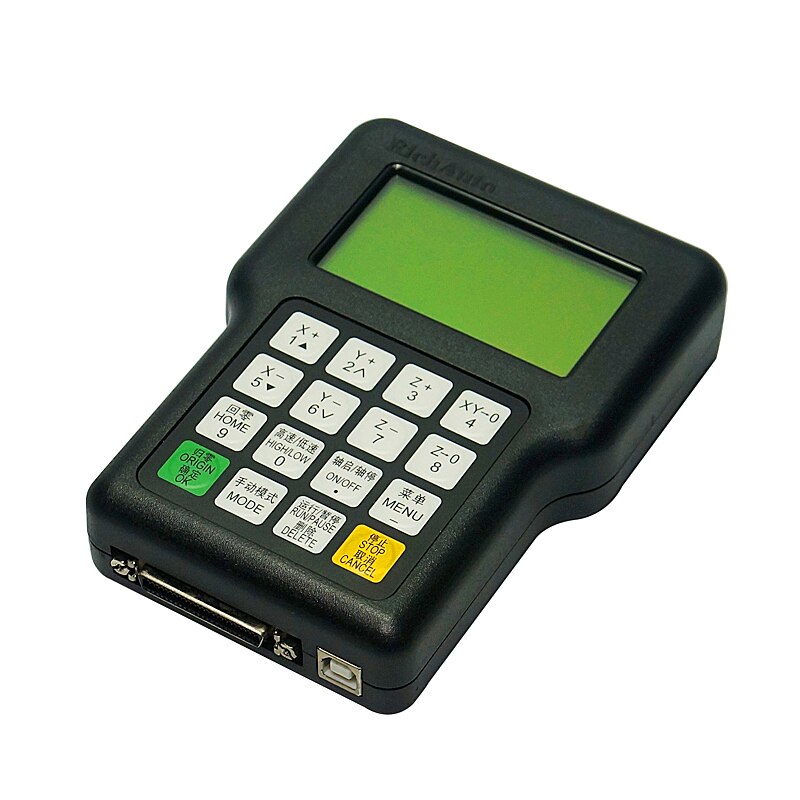

RichAuto DSP A11 CNC controller
Click Image for Gallery
Your can use it not connect computer any more, very convenient.
The software and manual (English version) will send online after purchase.
This item we have already set it into English Version, please purchase it with confidence.
- This is the original brand : RichAuto
- DSP controller for cnc router,USB connect,can be use without computer.
- Suitable for 3 axis.
- A11E/A11S the same as 0501. The function have improve, use in the same way.
- A11E/A11S have replaced 0501 from 2015.
- We have set up the English version before delivery.
- Manual and software can be sent by mail.
Product Model | RichAuto DSP A11 |
CPU | DSP |
Internal Memory | 512MB |
Display Screen | 128*64 Monochrome LCD |
Communication Port | U disk / USB cable |
Controlled Axis Number | 3 axes |
Control Signal | differential signal |
Drive System | step motor/servo motor |
Min.Input Unit | 0.001mm |
No Volt Protection | support |
Breakpoint Processing Function | 8 |
External Power Supply Voltage | 24V DC |
Manual Mode | Continuous/point move/distance |
Interpolation Way | line/arc |
Soft/Hard Limit | support |
Max. Pulse Frequency | 1M/S |
Password Protection | support |
Support Language | simple Chinese/traditional Chinese/English |
/other languages | |

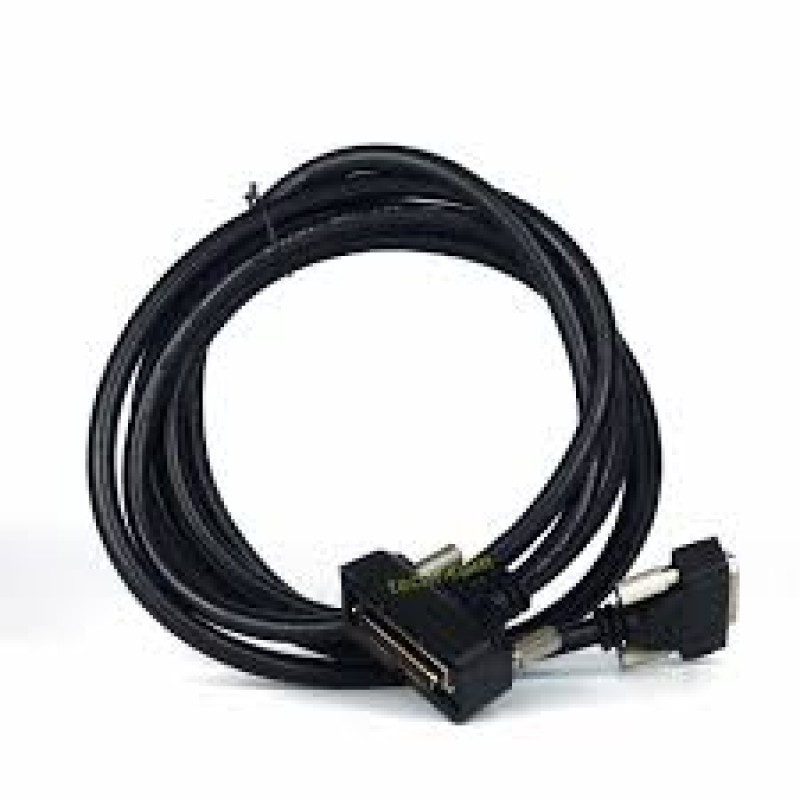

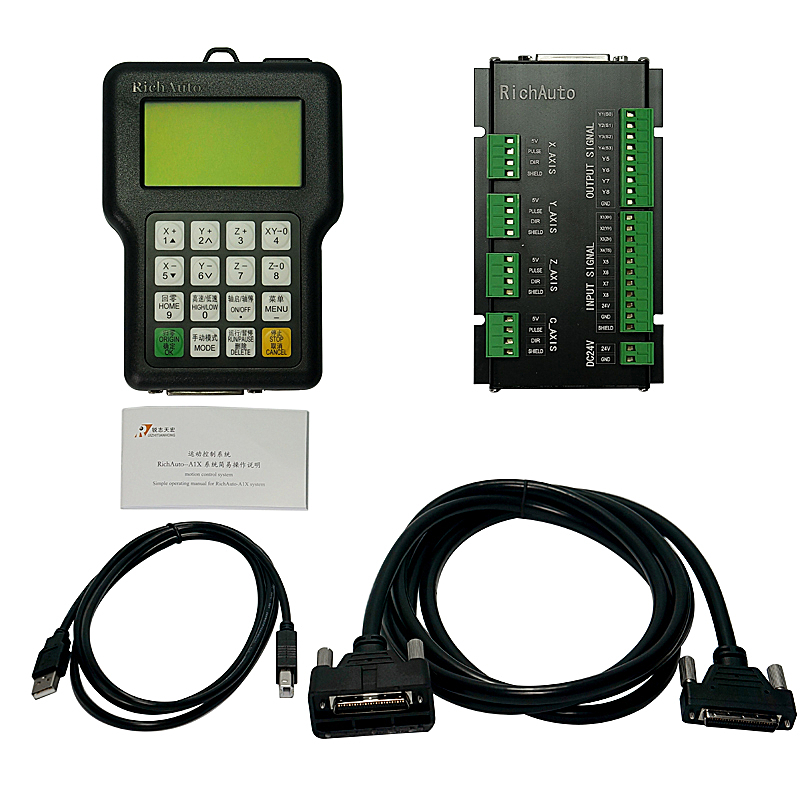

Standard Configuration | (1) DSP Handle (1) 50 core cable |

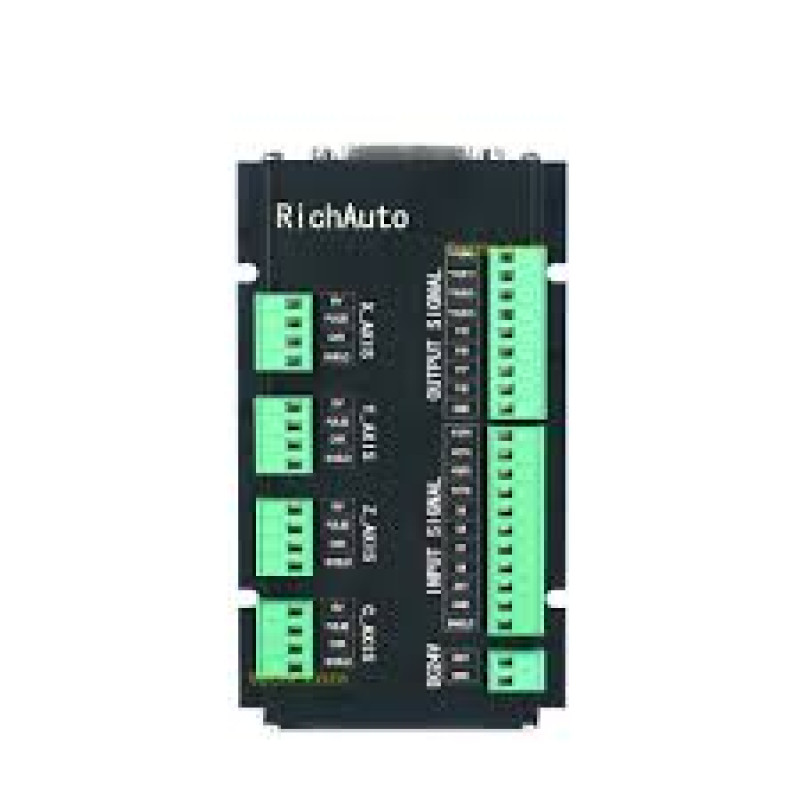

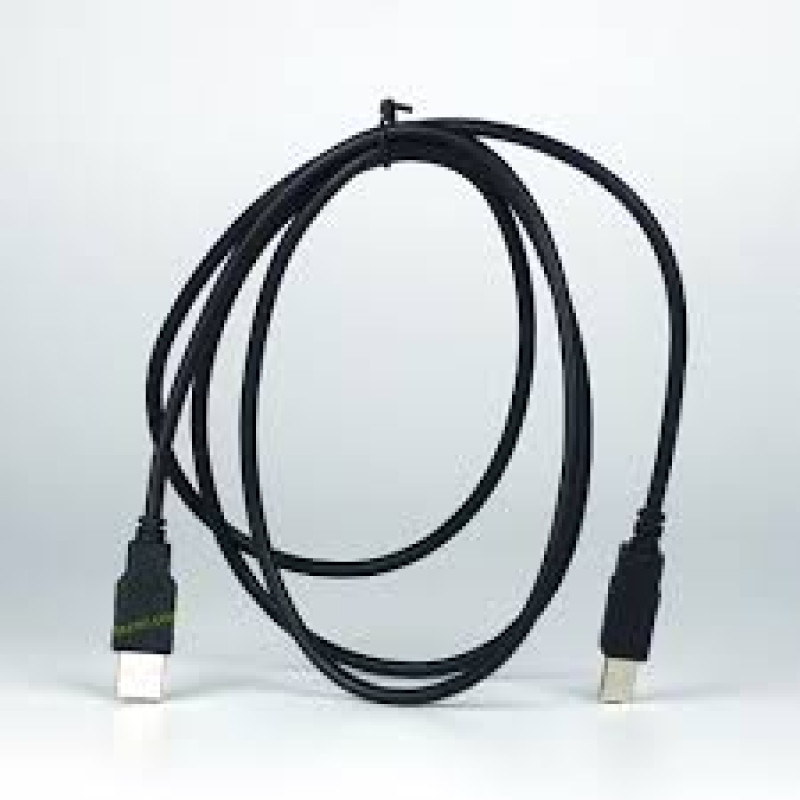

(1)USB cable (1) Wiring board |
What`s the difference between RichAuto A11E AND A11S two Version?
For the Operation and its system, it is all same. It could set the Language in DSP by yourself.
The Only different is:
The handle surface of A11E is English words without Chinese. (Default delivery model)
The handle surface of A11S have English and Chinese words.
- 1.Totally independent from PC platform;
- 2.Directly read files from U Disk;
- 3.Easily process G code or PLT file with super size;
- 4.Strong system and process file examining function;
- 5.Easy to update system program;
- 6.It supports high micro step which makes precise and fast process possible;
- 7.Support to process part of the file;
- 8.Reliable data protection and recover function;
- 9.Friendly operating interface
