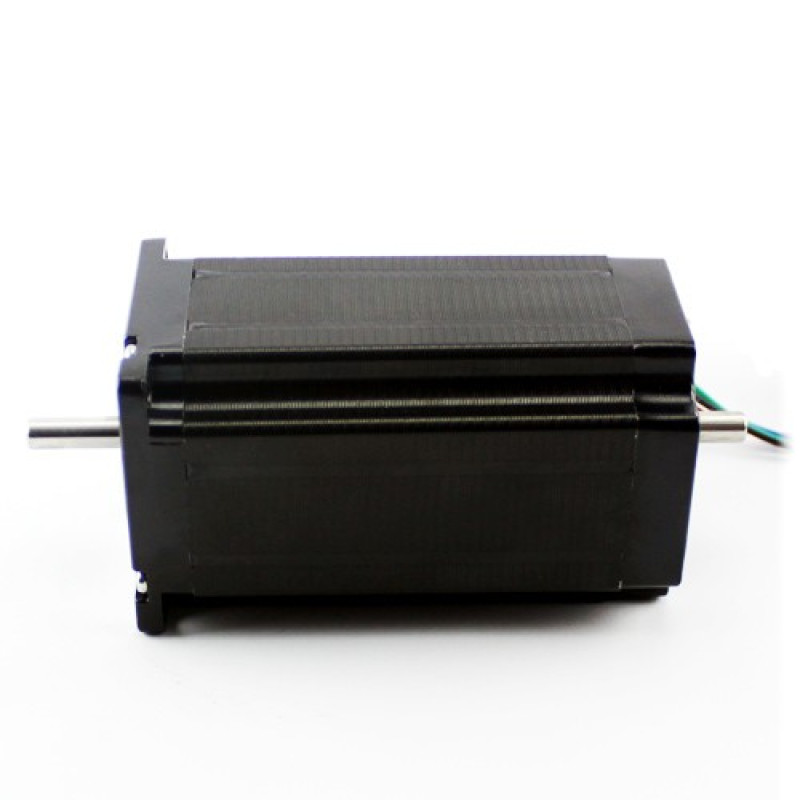

Stepper Motor-NEMA34- 86STH80-5504B (Dual shaft)
86mm Hybrid Stepper Series
The 86mm Hybrid Stepper Motor Series offers powerful holding torque in a variety of sizes. Use with a microstepping driver to reduce vibration and achieve higher step resolution. Choose a baseline version or request your own customized configuration.
Features:
- Bipolar or unipolar versions available
- Hybrid stepper construction
- Available in single or double shaft versions
- CE and RoHS approved
- Customizations on request
| Rated Voltage | Current /Phase | Resistance /Phase | Inductance /Phase | Holding Torque | Num. Leads | Rotor Inertia | Approx. Weight | Stall Torque | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Part No. | (V) | (A) | (ohm) | (mH) | (kg⋅cm) | () | (g⋅cm^2) | (kg) | (kg⋅cm) |
Body Length (mm) |
| LDO-86STH65-5904 | 1.65 | 5.9 | 0.28 | 1.7 | 34 | 4 | 1000 | 1.7 | 0.8 | 65 |
| LDO-86STH65-2808 | 4.2 | 2.8 | 1.4 | 3.9 | 34 | 8 | 1000 | 1.7 | 0.8 | 65 |
| LDO-86STH80-5504 | 2.3 | 5.5 | 0.46 | 4 | 46 | 4 | 1400 | 2.3 | 1.2 | 80 |
| LDO-86STH80-4208 | 2.4 | 4.24 | 0.75 | 3.4 | 46 | 8 | 1400 | 2.3 | 1.2 | 80 |
| LDO-86STH118-6004 | 2.7 | 6 | 0.6 | 6.5 | 87 | 4 | 2700 | 3.8 | 2.4 | 118 |
| LDO-86STH118-4208 | 2.4 | 4.2 | 0.9 | 6 | 87 | 8 | 2700 | 3.8 | 2.4 | 118 |
| LDO-86STH156-6204 | 3.5 | 6.2 | 0.75 | 9 | 122 | 4 | 4000 | 5.4 | 3.6 | 156 |
| LDO-86STH156-4208 | 2.8 | 4.2 | 1.25 | 8 | 122 | 8 | 4000 | 5.4 | 3.6 | 156 |
| Rated Voltage | Current /Phase | Resistance /Phase | Inductance /Phase | Holding Torque | Num. Leads | Rotor Inertia | Approx. Weight | Stall Torque | Body Length | |
|---|---|---|---|---|---|---|---|---|---|---|
| Part No. | (V) | (A) | (ohm) | (mH) | (kg⋅cm) | () | (g⋅cm^2) | (kg) | (kg⋅cm) | (mm) |
| LDO-86STH65-5904 | 1.65 | 5.9 | 0.28 | 1.7 | 34 | 4 | 1000 | 1.7 | 0.8 | 65 |
| LDO-86STH65-2808 | 4.2 | 2.8 | 1.4 | 3.9 | 34 | 8 | 1000 | 1.7 | 0.8 | 65 |
| LDO-86STH80-5504 | 2.3 | 5.5 | 0.46 | 4 | 46 | 4 | 1400 | 2.3 | 1.2 | 80 |
| LDO-86STH80-4208 | 2.4 | 4.24 | 0.75 | 3.4 | 46 | 8 | 1400 | 2.3 | 1.2 | 80 |
| LDO-86STH118-6004 | 2.7 | 6 | 0.6 | 6.5 | 87 | 4 | 2700 | 3.8 | 2.4 | 118 |
| LDO-86STH118-4208 | 2.4 | 4.2 | 0.9 | 6 | 87 | 8 | 2700 | 3.8 | 2.4 | 118 |
| LDO-86STH156-6204 | 3.5 | 6.2 | 0.75 | 9 | 122 | 4 | 4000 | 5.4 | 3.6 | 156 |
| LDO-86STH156-4208 | 2.8 | 4.2 | 1.25 | 8 | 122 | 8 | 4000 | 5.4 | 3.6 | 156 |
