100G Scale Load Cell
Comprehensive error: 0.05% F.S
Rated output temperature drift: ≤ 0.15% F.S / 10 ℃
Output Sensitivity: 1.0 ± 0.1 mV / V
Zero drift: 0.05% F.S (1 minute)
Zero point temperature drift: 0.2% F.S / 10 ° C
Zero output: ± 0.1 mV / V
Input impedance: 1000 ± 50Ω
Output impedance: 1000 ± 50Ω
Overload capacity: 150% F.S
Recommended excitation voltage: 5-10V
Operating temperature range: -10 ~ +50 ℃
Application: for high-precision small-scale weighing for micro-automatic testing equipment, micro-weighing equipment, pushing and pulling equipment, pull pressure test
Red: E +
Black: E-
White: A-
Green: A +
50KG Scale Load Cell
Product description Used widely in hopper scales, platform scales, platform balance, belt scale..
500.00DA Ex Tax: 500.00DA
5KG Scale Load Cell
Product description Used widely in hopper scales, platform scales, platform balance, ; belt scales..
1,000.00DA Ex Tax: 1,000.00DA
1KG Scale Load Cell
Product description Used widely in hopper scales, platform scales, platform balance, ..
1,000.00DA Ex Tax: 1,000.00DA
100G Scale Load Cell
Comprehensive error: 0.05% F.S Rated output temperature drift: ≤ 0.15% F.S / 10 ℃ Output Sensit..
2,400.00DA Ex Tax: 2,400.00DA

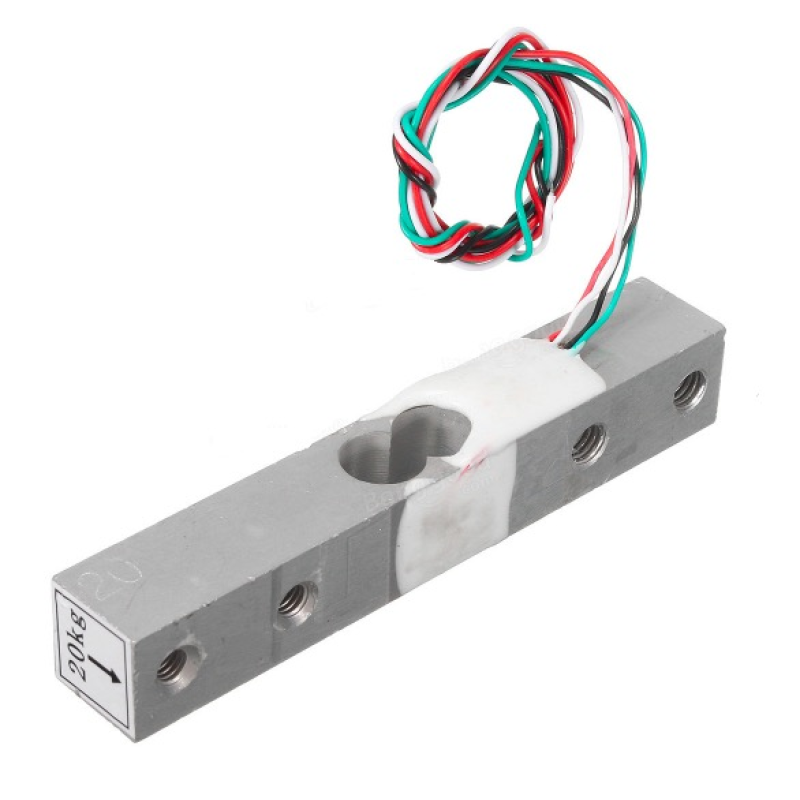

20Kg Scale Load Cell
Comprehensive error: 0.05% F.S Rated output temperature drift: ≤ 0.15% F.S / 10 ℃ Output Sensit..
1,000.00DA Ex Tax: 1,000.00DA
