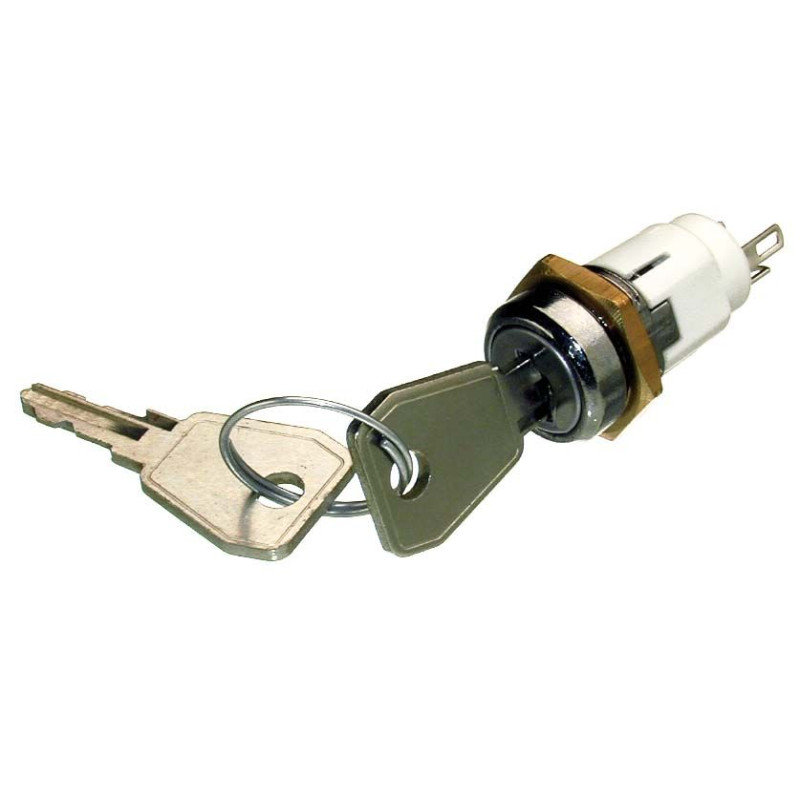

Key Push Button Switch Maintained 2 Position
Click Image for Gallery
Description :
Pushbutton Type : Maintained
Operation Type :2 Position
Mounting Diameter : 19mm
Rated Current/Voltage : 4A/250V
Switch Type : 2 NO 2NC
The Front Shape : Flat Round with Key
The Crust Material : Stainless Steel
IP Degree IP67
Other Specification :
Contact Resistance 50m
Insulation Resistance 1000m
Dielectric Strength 2000VAC
Operation Temp. -20C~+70 C
Mechanical Life 1.000.000 Cycles
Electrical Life 200.000Cycles
Contact Material Silver Alloy
Panel Thickness 1~10mm
Torque 5~14Nm
Operation Pressure 4N
