Single Color LED Sign Pixel 12 mm DC5V
Features
1. This single color LED sign pixel light is waterproof with the protection grade reaching IP68, which ensures a long life span. Its service life is greater than 50,000 hours. Low maintenance rate is required.
2. This energy efficient product allows high visual effect and excellent brightness. The power cost will be greatly lowered.
3. With the reasonable designed holes, it can be easily installed and maintained. Also, the proper flexible and soft PVC cover is applied to ensure the convenient and steady installation.
4. The LEDs are housed by the injection machine. With the UV powder, it resists UV radiation.
5. Our product is graceful with the transparent color. Its color can be made to match with your channel letter or sign.
6. Its connecting wire is commonly 100mm long. The length tolerance of -5% to +5% may exist.
Parameters
| Item No. | LS-DBS-SCF9WP | LS-DBS-SCF12WP |
| Product Name | 9mm LED Pixel Light | 12mm LED Pixel Light |
| Hole Size | 9mm | 12mm |
| Lighting Source | 5mm single color LED | 8mm single color LED |
| Input Voltage | DC5V | DC5V |
| Power Consumption | 0.1W/pcs | 0.1W/pcs |
| Waterproof Grade | IP68 | IP68 |
| Emitting Angle | 90°/120°-180° | 180° |
| Emitting Color | Red, yellow, blue, green, white | |
| Working Temperature | -40℃~60℃ | |
| Lifespan | >50,000 hrs | |

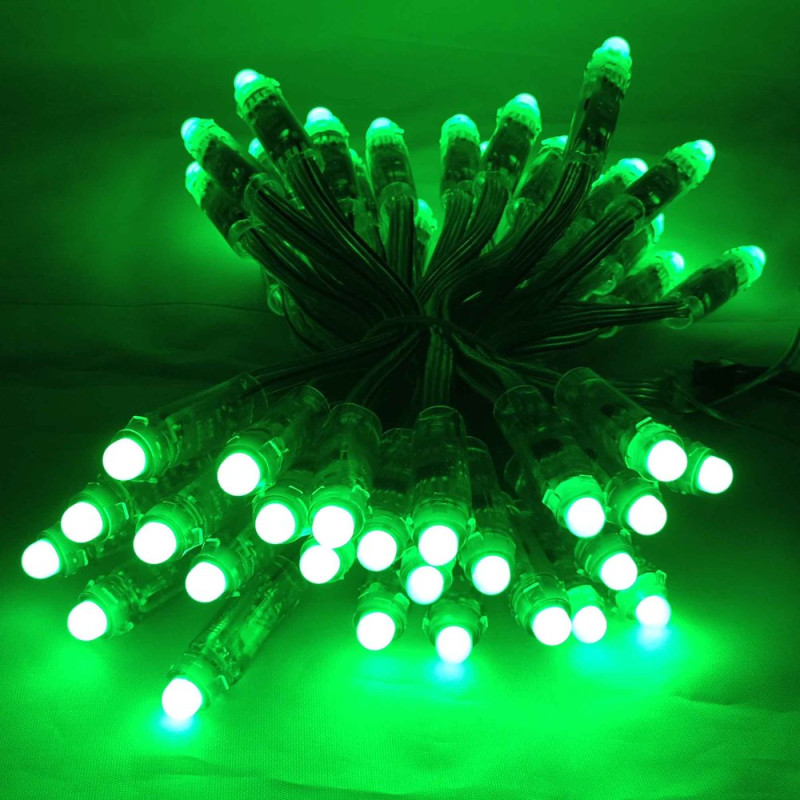

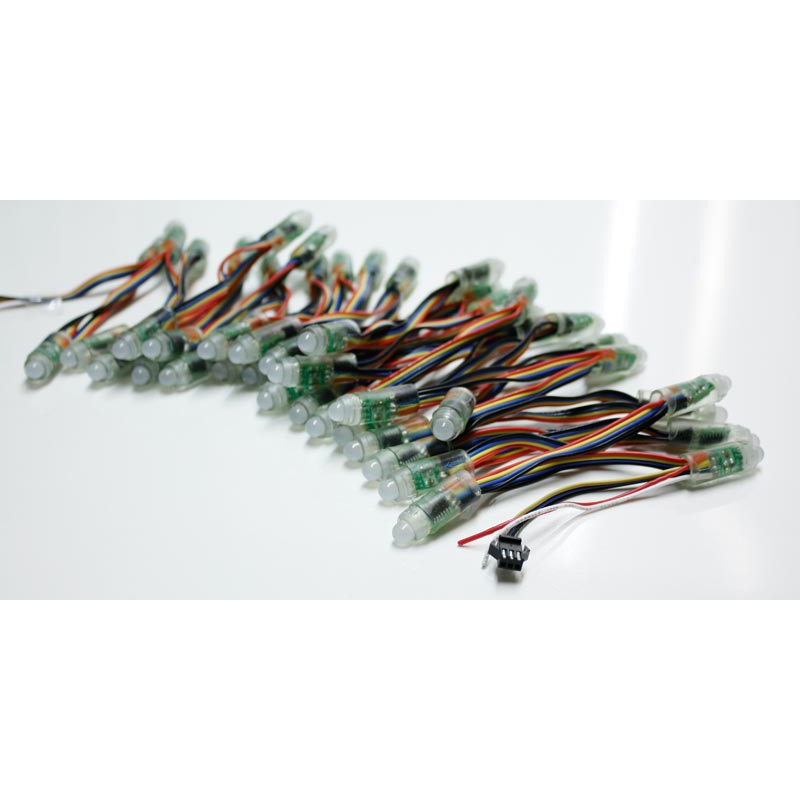

Single Color LED Sign Pixel Light
Due to the adoption of Taiwan ultra bright and large LED chip, our single color LED sign pixel light is high in brightness but low in luminous decay. Therefore, it is particularly applicable for outdoor use. This product is injection molded from high intensity and transparent PVC material, which allows excellent resistance to water and high temperature. In addition, it is equipped with a single-phase resistor as well as wires inlet and outlet, to realize the independent lighting and extinguishing.
Parameters
| Item No. | LS-DBS-SCF9WP | LS-DBS-SCF12WP |
| Product Name | 9mm LED Pixel Light | 12mm LED Pixel Light |
| Hole Size | 9mm | 12mm |
| Lighting Source | 5mm single color LED | 8mm single color LED |
| Input Voltage | DC5V | DC5V |
| Power Consumption | 0.1W/pcs | 0.1W/pcs |
| Waterproof Grade | IP68 | IP68 |
| Emitting Angle | 90°/120°-180° | 180° |
| Emitting Color | Red, yellow, blue, green, white | |
| Working Temperature | -40℃~60℃ | |
| Lifespan | >50,000 hrs | |
Features
1. This single color LED sign pixel light is waterproof with the protection grade reaching IP68, which ensures a long life span. Its service life is greater than 50,000 hours. Low maintenance rate is required.
2. This energy efficient product allows high visual effect and excellent brightness. The power cost will be greatly lowered.
3. With the reasonable designed holes, it can be easily installed and maintained. Also, the proper flexible and soft PVC cover is applied to ensure the convenient and steady installation.
4. The LEDs are housed by the injection machine. With the UV powder, it resists UV radiation.
5. Our product is graceful with the transparent color. Its color can be made to match with your channel letter or sign.
6. Its connecting wire is commonly 100mm long. The length tolerance of -5% to +5% may exist.
Application
1. Our product is suitable for both outdoor and indoor decoration.
2. In addition to the company LOGO,it can be served to the illuminated channel letter or other related applications.
3. It is also applicable for exterior signs or commercial advertising signs, especially for those signs on high-rise buildings.
