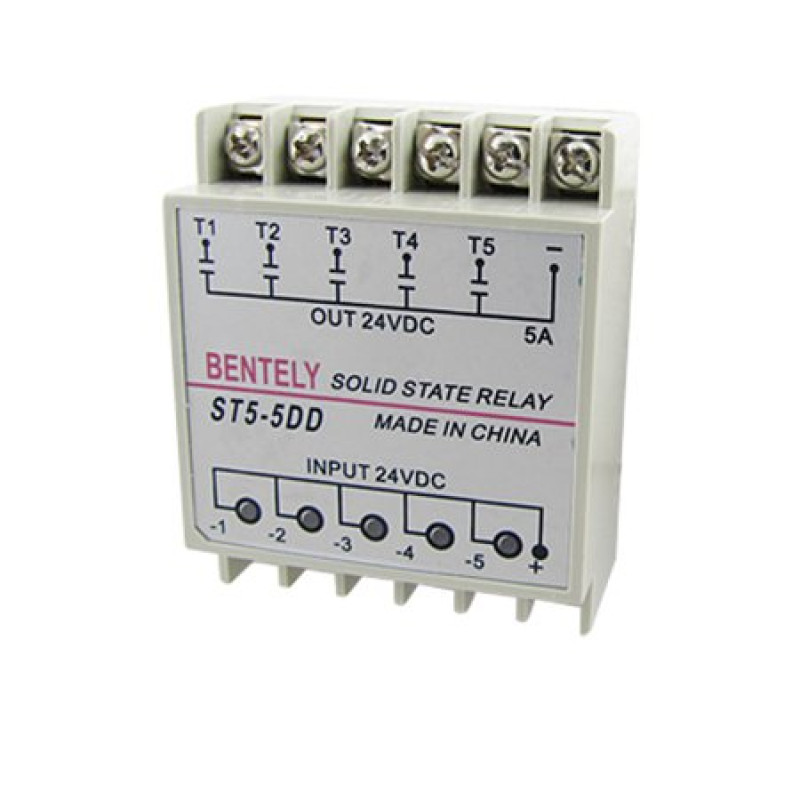

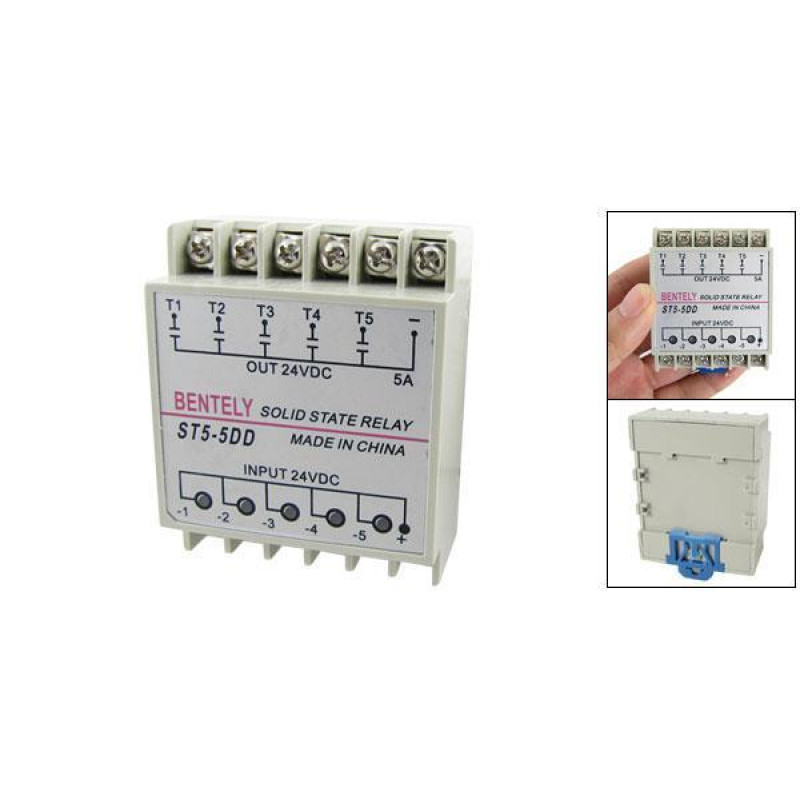

ST5-5DD 5ch Solid State Relay SSR 24V DC to 24V DC DIN Rail
Click Image for Gallery
Din Rail Solide state relay
- Input 24V DC
- Output 24VDC
- quintuplicate output
- Rate current 5A
| Type | Standard type | Isolation type | |
| Model | ST5-5DD | ST5-5DDG | PN5-10DA |
| Rated load current | 5A | 5A | 10A |
| Input Data | |||
| Input voltage | 24VDC | 3~32VDC | |
| Min. ON/OFF Voltage | ON>4V. OFF<1.0V | ON>2.4V. OFF<1.0V | |
| Trigger current | 7.5mA/12V | 4mA/12V | |
| Output Data | |||
| Operating Voltage | 24VDC | 5~36VDC | 24~380VAC |
| Voltage Drop | 1.6V/25°c | ||
| Leakage Current |  0.8mA |
0.7mA |
|
| Response Time | < 1ms | ON<10ms, OFF<10ms | |
| Dielectric Strength | Over 2.5KVAC/1min. | ||
| Isolation Strength | Over 50M/500VDC | ||
| Operation Temperature | _20°c ~ +80°c | ||
| Housing Material | Intensive ABS | ||
| Weight | 65g | 85g | |
| Installation | Din rail installation | ||
