High Power (Up to 43 Amp) Motor Driver Module - BTS7960
Click Image for Gallery

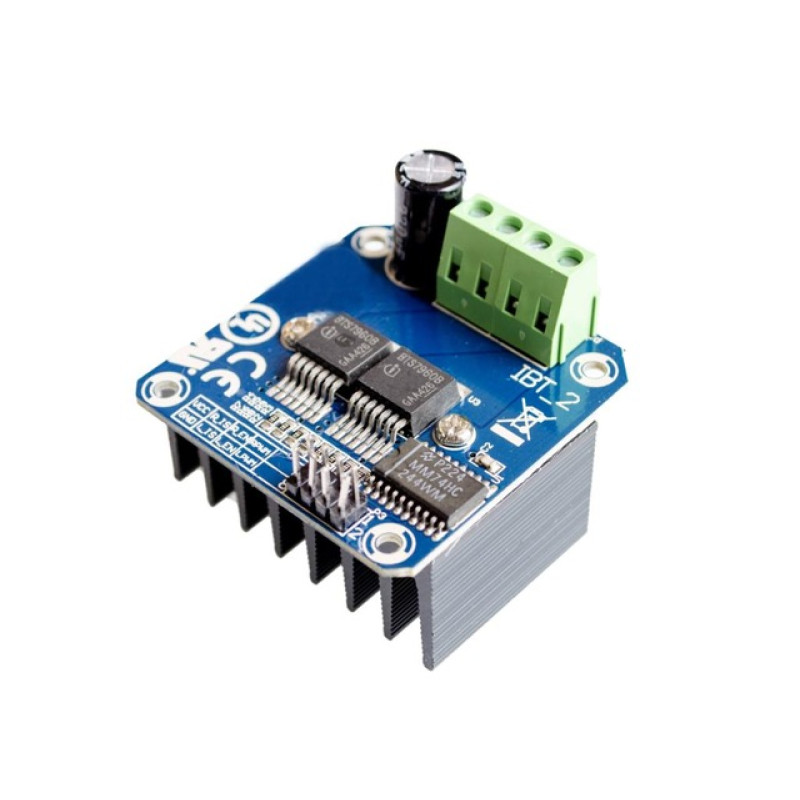

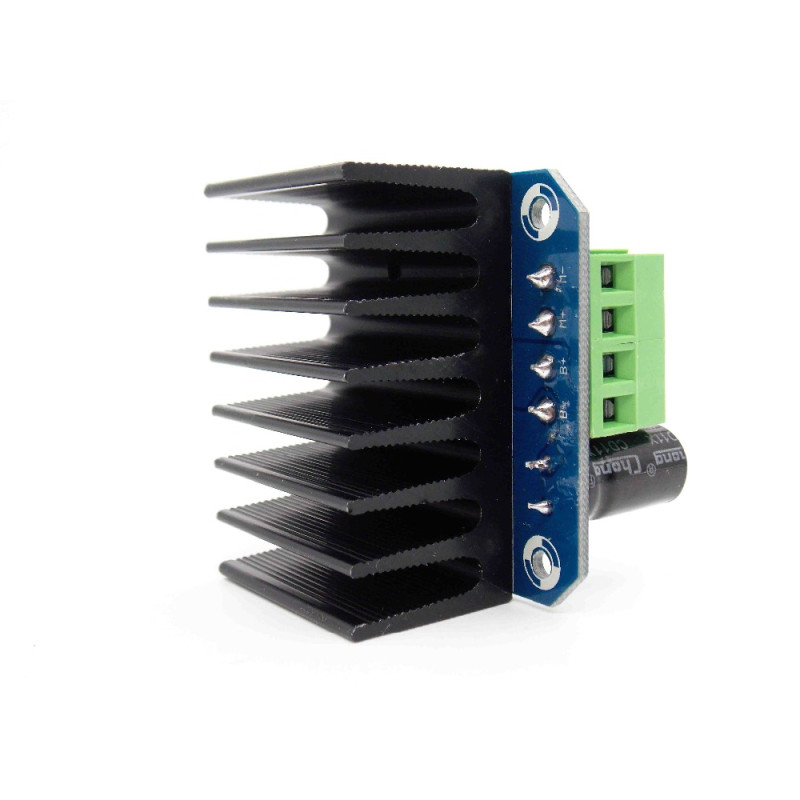

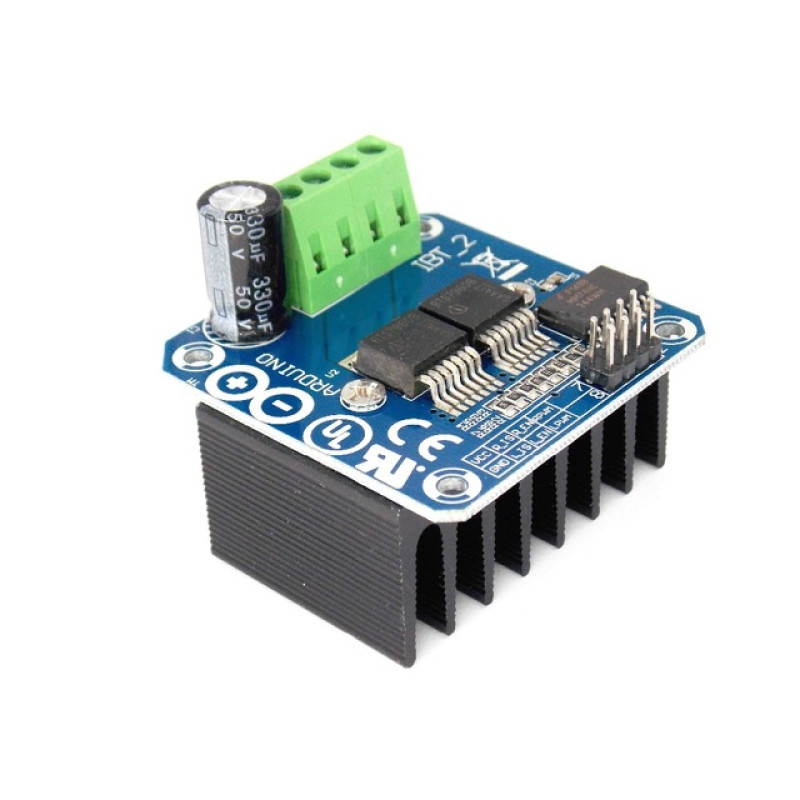

High Current Motor Driver Module BTS7960 - 43A
A H-bridge driver module that composed by Infineon power drive chip BTS7960, with overheating and overcurrent protection. Double BTS7960 H-bridge driver circuit, with strong drive and braking effect, use 74HC244 chip effectively isolate the microcontroller and the motor drive! High Current up to 43A!
Applications
- Current diagnostic
- Slope adjustment
- Overtemperature protection, overvoltage, undervoltage, overcurrent protection
- Short circuit protection
Specifications
- Input voltage: DC 6V – 27V
- Maximum current: 43A
- Input level: 3.3 – 5V
- Control mode: PWM or level
- Duty cycle: 0-100%
