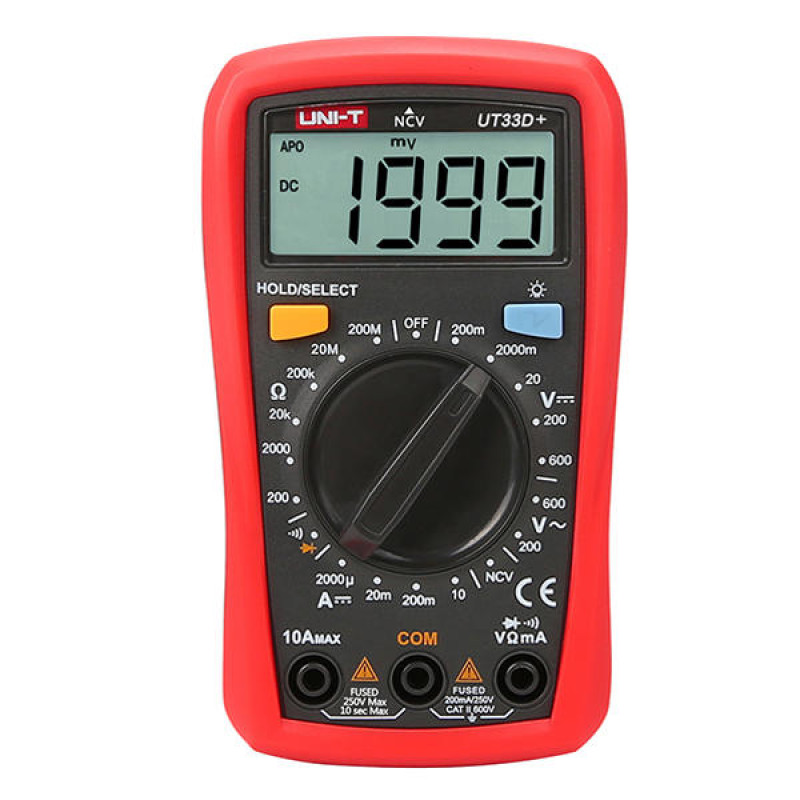

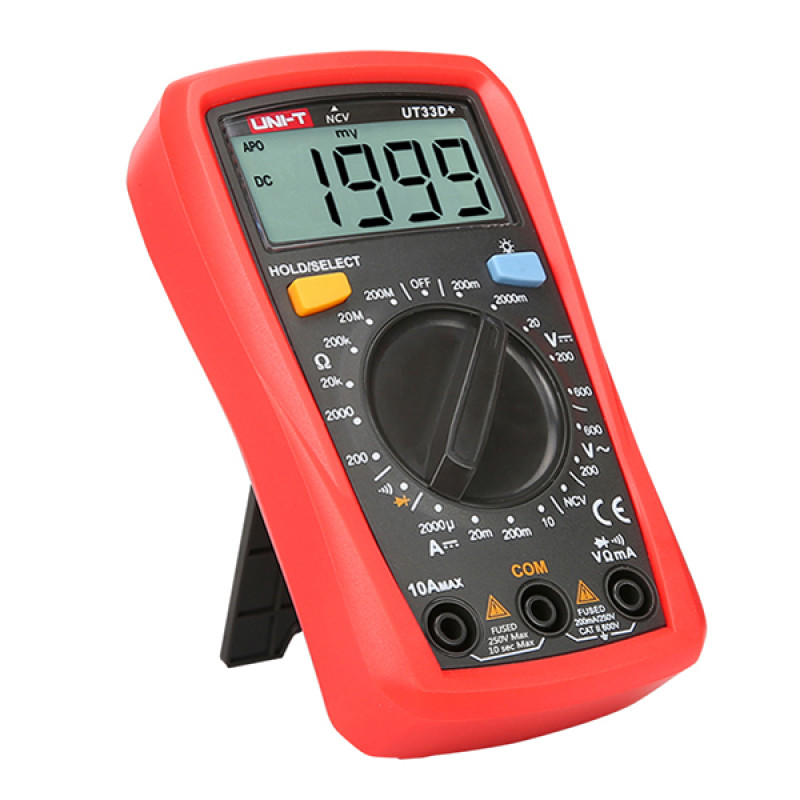

UNI-T UT33D+ Digital Multimeter
Description :
The new generation UT33+ series redefines the performance standards for introductory digital multimeters. Our innovative industrial design makes sure that these products can withstand 2 meters drop. The new LCD display layout provides a better user experience. The UT33+ series safety standards have also been enhanced to ensure that users can work safely in CAT ll 600V environment.
Features:
The new generation UT33+ series redefines the performance standards for introductory digital multimeters. Our innovative industrial design makes sure that these products can withstand 2 meters drop. The new LCD display layout provides a better user experience. The UT33+ series safety standards have also been enhanced to ensure that users can work safely in CAT ll 600V environment.
Specifications:
| Specifications | Range | Accuracy |
| UT33D+ | ||
| DC voltage (V) | 200.0mV～600V | ±(0.5%＋3) |
| AC voltage (V) | 200.0mV～600V | |
| 200.0V～600V | ±(1.2%+3) | |
| DC current (A) | 200.0μA～10.00A | ±(1.0%+3) |
| AC current (A) | 200.0μA～10.00A | NA |
| Resistance (Ω) | 200.0Ω～200.0MΩ | ±(1.0％+2) |
| 200.0Ω～20.00MΩ | ||
| Capacitance (F) | 2.000nF～2.000mF | NA |
| Features | ||
| Max display | 1999 | |
| Auto power off | √ | |
| Auto backlight off | √ | |
| Diode test | √ | |
| Continuity buzzer | √ | |
| Drop test | 2m | |
| Test probe holder | √ | |
| Safety rating | CAT Ⅱ 600V | |
| Range selection | Manual | |
| Battery test | ||
| Temperature (°C/°F) | ||
| NCV | √ | |
| General Characteristics | ||
| Power | AAA battery (zn-mn) 1.5V×2 | |
| LCD size | 66mm*51mm | |
| Product color | Red and grey | |
| Product net weight | 473g | |
| Product size | 131mm×95mm×58mm | |
| Standard accessories | Test lead, manual | |
| Standard individual packing | Gift box, manual | |
| Standard quantity per carton | 60pcs | |
| Standard carton measurement | 640mm×310mm×350mm | |
