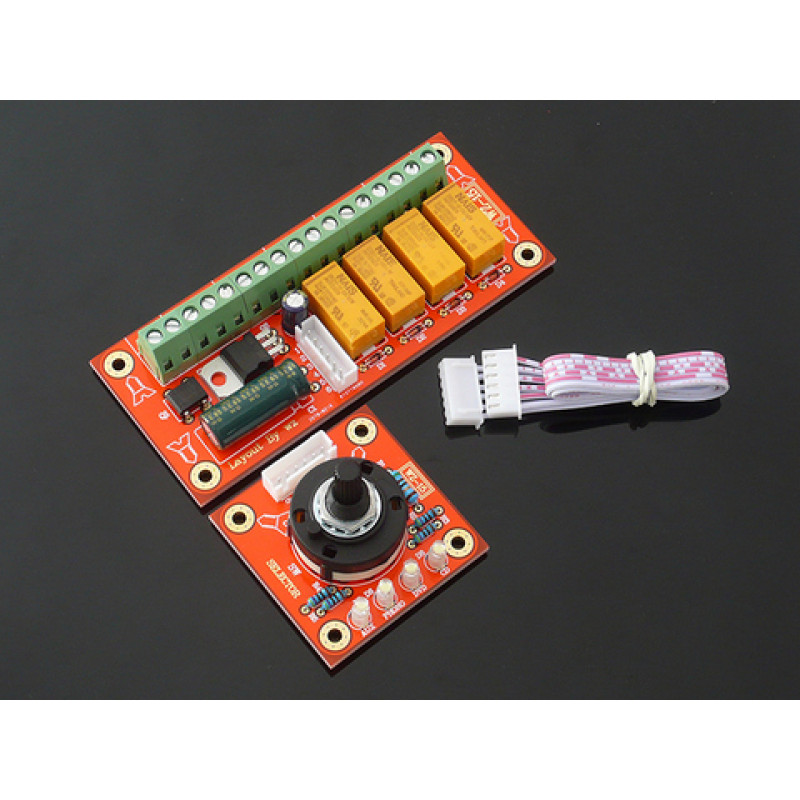

WZ-15 Assembled 4 Way Audio Source Switch Board

WZ-15 Assembled 4 Way Audio Source Switch Board
Click Image for Gallery
WZ-15 Assembled 4 Way Audio Source Switch Board WZ-15 Assembled 4 Way Audio Source Switch Board

Product Details:

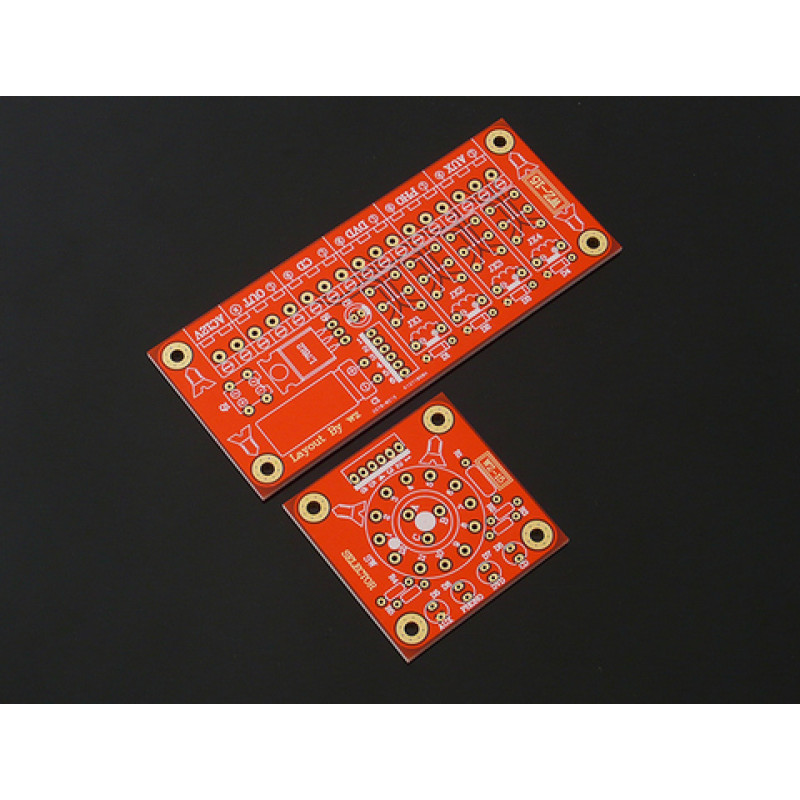

Use 2mm thick double sided gold plated PCB

Supply voltage: AC12-15V single or DC12-18V

46mm x 46mm Switch Panel Size, 35.56x35.56mm Installation Hole

Size of the motherboard 107mm x 46mm, mounting hole 96.52x35.56mm

Switch panel installation hole button about 10mm, the maximum relay board height of about 20mm.

Relay for Panasonic Japanese used

Can switch CD / DVD / PHONO / AUX a total of 4 groups of inputs, and equipped with a LED light tube for speed switch instructions

Write a review

Please login or register to review
  • Views: 620
  • Brand: Tiah
  • Product Code: DZD003202
  • Availability: 10
  • 4,900.00DA
  • Ex Tax: 4,900.00DA
Add to Wish List Compare this Product

0 reviews / Write a review

Tags: wz, 15, assembled, 4, way, audio, source, switch, board
